Description

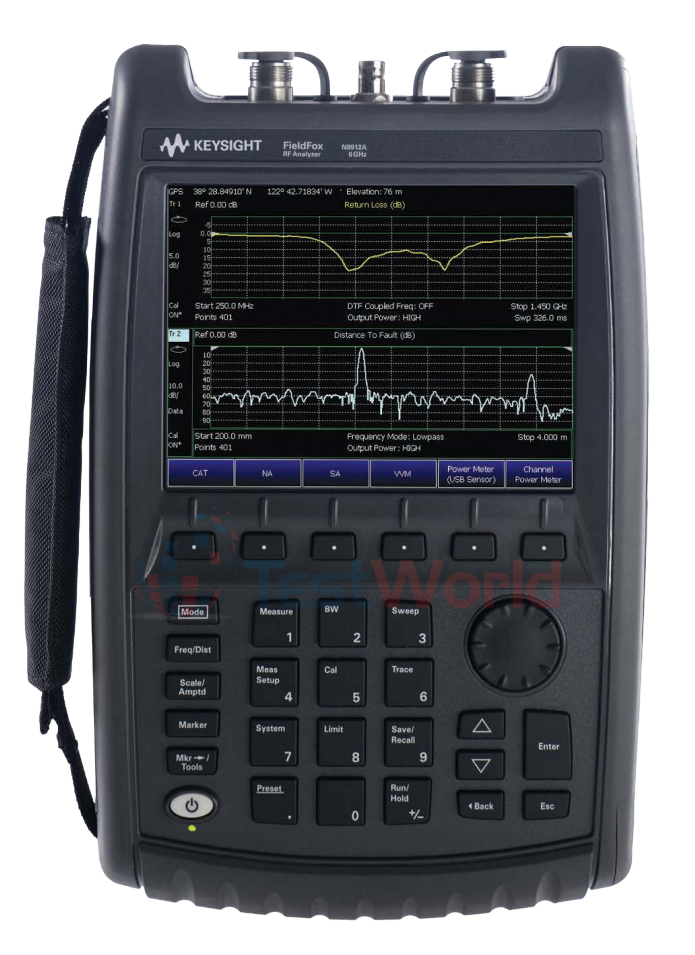

Keysight (Agilent) N9912A FieldFox Handheld RF Combination Analyzer, 4 and 6 GHz is designed to withstand your toughest working conditions. To accelerate your work, each operating mode has a task-driven user interface that saves time in the field. Step up to FieldFox – and boost your readiness.
The Keysight (Agilent) N9912A’s base function is a cable and antenna analyzer and it can be configured to include a spectrum and transmission/reflection 1-port vector, 2-port scalar network analyzer. Keysight (Agilent) FieldFox can be ordered with additional capabilities: power meter, independent signal generator and interference analyzer.

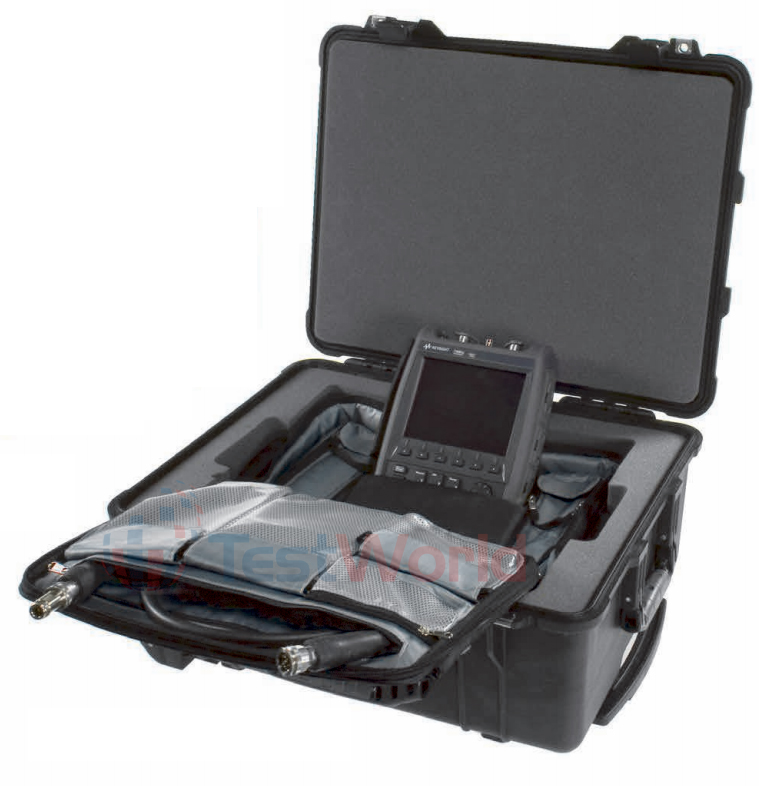

The following accessories are included with every Keysight (Agilent) FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable, Quick Reference Guide and User’s Guide. In addition, Keysight Technologies offers a standard 3-year warranty on all RF and microwave FieldFox analyzers. Please note that for a short time, online Quotes will reflect a charge for the 3-year warranty. This charge will be waived when an order is placed.
Keysight (Agilent) N9912A Applications:
- Cell site management – cable and antenna test
- RF spectrum monitoring and interference analysis
- Active and passive device test
Keysight (Agilent) N9912A Measurement Features:
- Cable and antenna test, distance-to-fault, return loss, cable loss
- Vector network analysis with Smith chart display and time domain
- Vector voltmeter
- Spectrum analyzer, CHP, ACPR, OBW
- Interference analyzer, spectrogram, waterfall, record and playback
- Independent source, CW and tracking
- Power meter (USB), channel power meter (built-in), and pulse measurements
- QuickCal – Built-in calibration – no cal kit required
- CalReady – Immediate distance-to-fault measurements at the test port
Contact TestWorld today for the best price on the Keysight (Agilent) N9912A FieldFox Handheld RF Combination Analyzer, 4 and 6 GHz.
Explore Financial options to find a cost management solution best for your company:
Configurable Options for the Keysight (Agilent) N9912A:
- N9912A-010 Network analyzer time domain (requires Option 303)
- N9912A-030 Remote control capability
- N9912A-104 4 GHz cable and antenna analyzer. This option is standard in the base price.
- N9912A-106 6 GHz cable and antenna analyzer
- N9912A-110 Transmission measurement (for insertion loss or gain measurement)
- N9912A-111 QuickCal
- N9912A-230 4 GHz spectrum analyzer (requires Option 104), includes tracking generator, independent source
- N9912A-231 6 GHz spectrum analyzer (requires Option 106), includes tracking generator, independent source
- N9912A-235 Preamplifier for spectrum analyzer (requires Option N9912A-230 or N9912A-231)
- N9912A-236 Interference analyzer
- N9912A-302 External USB power sensor support
- N9912A-303 Network analyzer capability (Option 110 recommended)
- N9912A-308 Vector voltmeter
- N9912A-311 Channel power meter
- N9912A-30 Pulse measurements
