Description

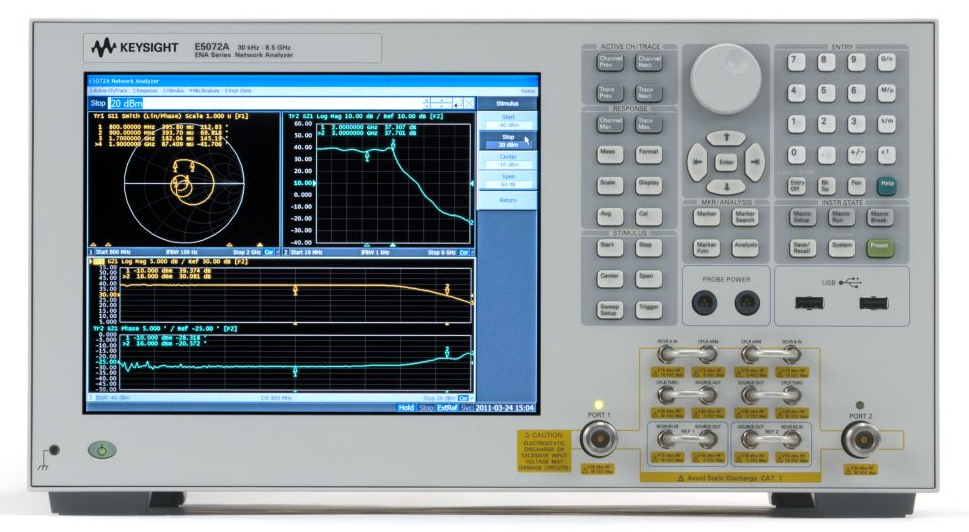

TheKeysight (Agilent) E5072A 2-Port Network Analyzer, 30 kHz – 4.5/8.5 GHz is a new addition to the ENA series providing a more flexible platform with enhanced capabilities to meet your evolving measurement needs for a wide range of applications. The improved performance on the E5072A exceeds what is possible with the current RF network analyzers. The E5072A with a configurable test set provides access to the signal paths between the internal source, receivers, bridges, and the analyzer’s test ports; which improves instrument sensitivity as well as the ability to add components or peripherals for a variety of applications. The E5072A delivers new standards in versatility, speed and accuracy, and is suitable for full performance characterization of passive and active components, such as antennas, high-rejection filters, and high-power amplifiers.
The Keysight (Agilent) E5072A with power level calibration techniques is a cost-effective & powerful tool for RF amplifier measurements. Its receiver leveling function with receiver measurements helps you achieve accurate absolute power level for characterization of power-dependent active devices in nonlinear operation.
Amplifier measurement wizard for the Keysight (Agilent) E5072A is available on Keysight’s website that guides you through measurement procedures of your amplifiers and minimize the time spent on measurement setup. S-parameter, harmonic distortion, and CW or swept gain compression measurements are supported by the utility wizard.
Innovative PIM and S-parameter measurement solution
Passive intermodulation (PIM) is a form of intermodulation distortion that occurs in passive components such as antennas, cables, connectors, or duplexers with two or more high-power input signals.
The innovative solution with the Keysight (Agilent) E5072A can combine PIM and S-parameter measurements of these passive components. With Fast, Flexible and Accurate measurement capabilities, the new test system is a higher-performance and lower-cost solution that can replace the conventional PIM test solutions.
Features of the Keysight (Agilent) E5072A 2-Port Network Analyzer, 30 kHz – 4.5/8.5 GHz:
- 2-port, 30 kHz to 4.5 GHz & 8.5 GHz
- Configurable test set (direct receiver access)
- High output power (up to +20 dBm)
- Extended dynamic range (up to 151 dB)
- Fast measurement speed: 7 msec at full 2-port cal, 401 points
- Low trace noise: 0.004 dB rms at 70 kHz IFBW
- High temperature stability: 0.005 dB/°C
- High throughput and user Interface customization with built-in VBA
- Compatibility with Keysight (Agilent) E5071C and Keysight (Agilent/HP) 8753 series
- Passive Intermodulation (PIM) measurement
Contact TestWorld today for the best price on a Keysight (Agilent) E5072A 2-Port Network Analyzer, 30 kHz – 4.5/8.5 GHz.
Configurable Options for the Keysight (Agilent) E5072A 2-Port Network Analyzer, 30 kHz – 4.5/8.5 GHz:
| E5072A-008 | |||
| E5072A-010 | |||
| E5072A-017 | Removable hard disk drive | ||
| E5072A-019 | Standard hard disk drive | ||
| E5072A-1A7 | Calibration + Uncertainties + Guardbanding | ||
| E5072A-1CM | Rack mount kit | ||
| E5072A-1CN | Front handle kit | ||
| E5072A-1CP | Rack mount and front handle kit | ||
| E5072A-1E5 | High stability timebase | ||
| E5072A-245 | |||
| E5072A-285 | |||
| E5072A-810 | Add keyboard | ||
| E5072A-820 | Add mouse | ||
| E5072A-A6J | ANSI Z540-1-1994 Calibration | ||
| E5072A-UNQ | Standard stability timebase |
