Description
The Haefely AXOS5 expandable test system integrates all of the best features of several standalone test systems into one single economic solution.
It can be individually combined either with 5 kV Surge Combination Wave, 5 kV EFT/Burst, Dips & Interrupts, along with an integrated single-phase coupling / decoupling network. This allows quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards.

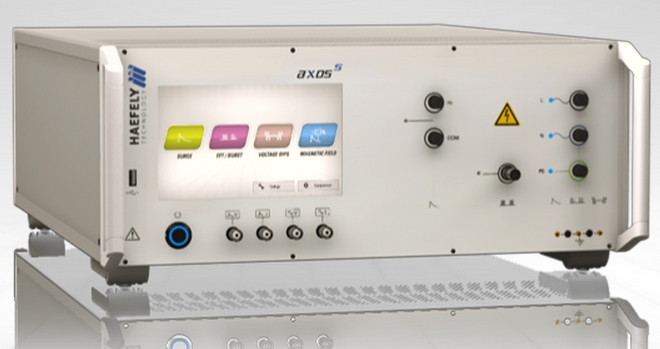

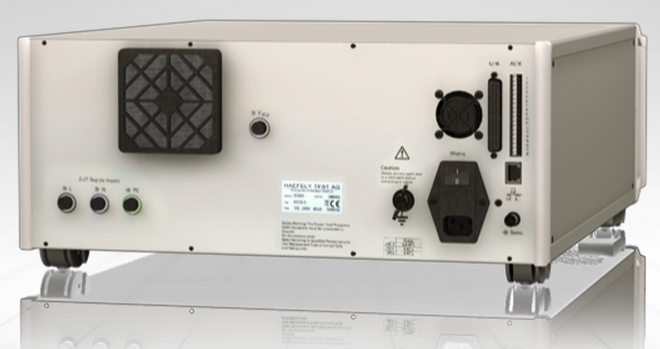

The AXOS5 can either be operated via front panel by large color graphic interface or remotely from the PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequently users. Numerous additional functions such as external start/stop function allows easy integration of the test system also in customer specific test environments.
All the test parameters can be varied in a broad range wide above the requirements of the standards. Together with the ability of changing test parameters during test, AXOS5 is not only the ideal product for compliance and pre-compliance testing, it is useful for monitoring & debugging function during design phase as well. A wide range of cost-efficient and user friendly coupling / decoupling networks for power lines as well as for symmetrical and asymmetrical data- and signal lines are available as options.
Meet the Following IEC Standards with the Haefely AXOS5:
IEC/EN 61000-4-5 Surge Combination Wave 1.2/50μs…8/20μs: Surge events can be generated by lightning phenomena, switching transients or the activation of protection devices in the power distribution system. A surge itself is influenced by the propagation path taken so that impulses from t he same event may have different forms depending upon where a measurement is take n. Combination Wave Generators (CWG) simulate a surge event in power lines close to or within buildings. Mostly the disturbances are tolerable because they a re single events.
IEC/EN 61000-4-4 Electric Fast Transients, EFT/Burst: Industrial measurement and control equipment nearly always use conventional control units containing relays or other electro-mechanical switching devices. Fluorescent lamp ballast units, insufficiently suppressed motors (hair dryers, vacuum cleaners, drills, etc.) are found everywhere in the public power supply. All of these are primarily inductive loads which generate interference when switched on or off. EFT events, can cause microprocessor units to malfunction or reset, with corresponding disruption to normal operation.
IEC/EN 61000-4-11 Voltage Dips and Interrupts: Voltage failures occur following switching operations, short-circuits, response of fuses and when running up heavy loads. The quality of the electrical power supply is increasingly becoming a central topic of discussion. The interference sources in the mains, caused by electronic power control with non-linear components e.g. thyristors are used more frequently in domestic appliances such as hotplates, heating units, washing machines, television sets, economy lamps, PCs and industrial systems with speed-controlled drives.
IEC/EN 61000-4-9 Pulsed Magnetic Field: Under normal operating conditions, an AC current generates a steady magnetic field so that equipment, such as monitors, close to AC power lines could suffer interference. Under fault conditions, a sudden high current level can result in a short duration magnetic field. Lightning strokes or short circuit fault currents in the power network can generate high level short duration magnetic fields.
IEC/EN 61000-4-12 Ring Wave / IEEE C62.41: Ring waves are used to simulate lightning or switching effects in domestic single or three phase supplies within an adequately protected building. The waveform has similar characteristics in both open and short circuit conditions. The ring wave is characterized as a bipolar damped oscillating wave.
Contact TestWorld today for the best price on a Haefely AXOS5 EMC Impulse Generator for Surge, Burst/EFT & Dips, Drops & Interrupts.
Explore Financial options to find a cost management solution best for your company:
Common Configurations available for the Haefely Axos5:
- Haefely AXOS5 Compact Immunity Test System (Part #2490400)
- Surge 1.2/50μs…8/20μs for IEC/EN 61000-4-5
- EFT/Burst for IEC/EN 61000-4-4
- Voltage Dips for IEC/EN 61000-4-11 (DIP 116 Automatic Dips Transformer 16 A 40/70/80% required)
- Magnetic Field IEC/EN 61000-4-9 (antenna coil “MSURGE-A” required)
- Haefely AXOS5 Surge Test System (Part #2490401)
- Surge 1.2/50μs…8/20μs for IEC/EN 61000-4-5
- Magnetic Field IEC/EN 61000-4-9 (antenna coil “MSURGE-A” required)
- Haefely AXOS5 EFT/Burst Test System (Part #2490402)
- EFT/Burst for IEC/EN 61000-4-4
- Haefely AXOS5 Dips Test System (Part #2490403)
- Voltage Dips for IEC/EN 61000-4-11 (DIP 116 Automatic Dips Transformer 16 A 40/70/80% required)
Coupling / Decoupling Network Options for your Haefely Axos5:
- FP-EFT 32M 3-Phase CDN EFT/Burst 32 A / 690 V Part #2490170
- FP-EFT 100M2 3-Phase CDN EFT/Burst 100 A / 690 V Part #2495860
- IP4A Capacitive Coupling Clamp for EFT/Burst Part #2491300
- FP-SURGE 32A Automatic 3-Phase CDN Surge 32 A / 690 V Part #2490700
- FP-SURGE 100M2 3-Phase CDN Surge 32A / 690 V Part #2490180
- PCD 121 Symmetrical Data & Control Line Coupler Part #2498010
- PCD 126A Asymmetrical Data & Control Line Coupler Part #2498030
- DEC 5 Symmetrical Data & Control Line Decoupler Part #2490141
- DEC 6 Symmetrical Data & Control Line Decoupler Part #2490151
- DEC 7 Asymmetrical Data & Control Line Decoupler Part #2490161
Additional Accessories for CE Mark Testing with the Haefely Axos5:
- DIP 116 Automatic Dips Transformer 16 A 40/70/80% Part #2490410
- MSURGE-A Magnetic Field Test IEC / EN 61000-4-9 Part #2490441
- VTM 15000 Isolation Test 1.2/50 us up to 10 kV Part #2499960
- VTM 15000/05 Isolation Test 1.2/50 us up to 10 kV / 0.5J Part #2499692
- PDP 8000 HV Differential Probe 1000:1 for Surge Part #2499911
- CP 101 Current Probe Model for Surge Part #2499931
- ES External Emergency Stop Switch P12 Part #4700751
- WL External Warning Lamp P12 Part #4700750
- Calibration Accredited Calibration AXOS5 Part #2490420
- Surge Key Code Key Code for Surge extension AXOS5 Part #4700814
- EFT/Burst Key Code Key Code for EFT/Burst extension AXOS5 Part #4700815
- Dips Key Code Key Code for Voltage Dips extension AXOS5 Part #4700816
