Fluke 5520A High Performance Multi-Product Calibrator

Fluke 5520A High Performance Multi-Product Calibrator

Product Documentation

Description

The Fluke 5520A Multi-Product Calibrator sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate dc and ac power with phase control, resistance, capacitance, thermocouples and RTDs. The Fluke 5520A can also measure thermocouple temperature, humidity (with probe) and pressure using one of 28 Fluke Calibration 700 Series pressure modules. Three options add the capability to calibrate oscilloscopes up to 1.1 GHz. And the Fluke 5520A-PQ Power Quality Option enables the Fluke 5520A to calibrate power quality instrumentation to the standards of the IEC and other regulatory agencies.

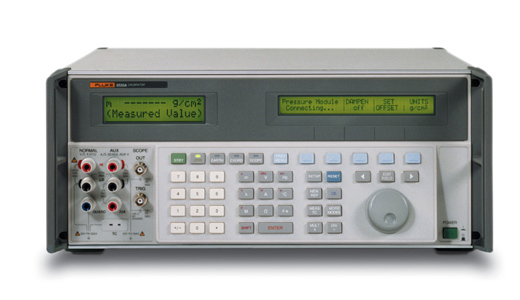

Though it can do a lot, the Fluke 5520A is simple to use. Its front panel is logically arranged and clearly labeled. And its bright LCD displays provide all the information you need at a glance. The 5520A is so intuitively easy to use, you’ll seldom need to consult the manual. For almost every operation, your hand moves naturally from left to right. Values are entered on the calculator-style keyboard. Output values can be stepped up or down easily in even decade multiples (1-2-5 sequence in scope mode) using the multiply and divide keys. You can even view the uncertainty for any value at the press of a key.

The basic Fluke 5520A Multi-Product Calibrator can tackle a tremendous amount of work. And as your workload changes, your Fluke 5520A can adapt. Three options are available to address the calibration requirements of oscilloscopes. If your workload is made up mostly of oscilloscopes up to 300 MHz bandwidth, the Fluke 5500A-SC300 option is an affordable solution. If your workload extends to 600 MHz, the Fluke 5500A-SC600 adds complete, powerful oscilloscope calibration capability to your 5520A. The Fluke 5520A-SC1100 option enables the 5520A to calibrate all of your oscilloscopes up to 1.1 GHz with rise times to 300 ps Рeven 125 ps with the 5800A/TDP tunnel diode pulser option. Any of these options can be fitted at time of purchase, or added later as your needs change.

If three-phase power measurement tools are part of your workload, the Fluke 5520A can greatly simplify the task. Its phase locking capability makes it possible to “lock” three Fluke 5520As together to simulate three phase power up to nearly 21 kW with multiple waveforms, harmonics and precise phase control. Using this capability, you can also “sum” the current outputs of multiple Fluke 5520As to source 100A or more to directly verify current clamps or power transformers.

The Fluke 5520A builds on the Fluke 5500A‘s capabilities, extending its workload coverage even further. Its improved accuracy, expanded ranges, and capability to calibrate 5 1/2 and 6 1/2 digit multimeters can cover virtually all your high-performance workload, including:

  • Handheld and bench meters (analog and digital) up to 6 1/2 digits
  • Thermocouple and RTD thermometers
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Current clamps and clamp meters
  • Analog or digital handheld and bench oscilloscopes (with options)
  • Panel meters
  • Graphical multimeters
  • Power meters, disturbance analyzers, power quality monitors, recorders and other power quality related equipment (with option)


Contact TestWorld
today for the best price on the Fluke 5500A Multi-Product Calibrator. Rental and financing/lease options available.
