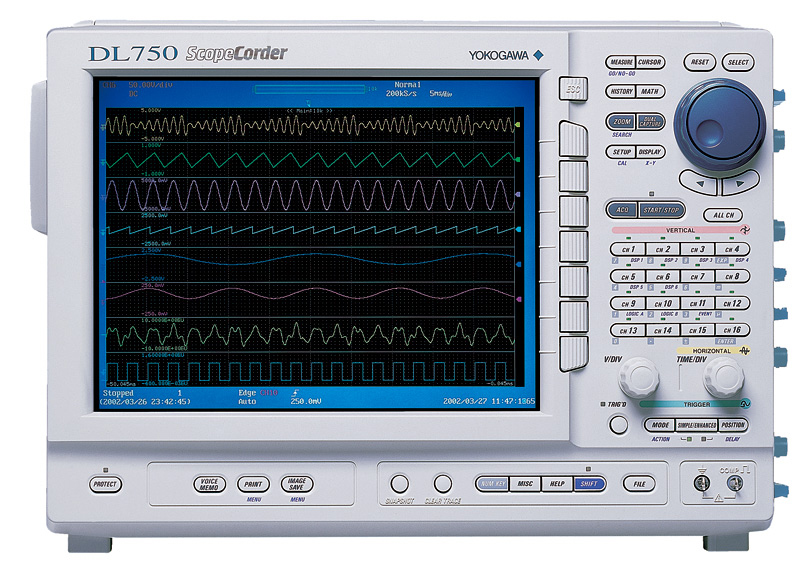

Designed for electro-mechanical systems, the Yokogawa DL750 ScopeCorder delivers higher vertical resolution, channel count, isolation, filtering, and abundant acquisition memory. As a diagnostic tool, the Yokogawa DL750 ScopeCorder offers all the analysis tools of a modern digital oscilloscope, like cursors, waveform parameter calculations, math and DSP channels, FFT’s, and more.  In most cases, you can analyze your data and get results immediately, with no offline post-processing.

As a recorder, the Yokogawa DL750 ScopeCorder can automatically send you an email, print your captured data, sound an alarm, and save your data when it detects a fault condition. Whether your observation times are microseconds or months, the Yokogawa DL750 ScopeCorder will stay on the job, and your data will be waiting for you when you are ready for it.

Features of the Yokogawa DL750:

  • Accurately Measure and Display Complex Signals
    • Capturing Signals Using the Longest Memory Capacity Ever
    • A Wide Range of Trigger Function for Accurately Capturing a Variety of Waveforms
    • History Memory and History Search for Efficient Access to Large Amounts of Captured Data
  • Analyze Captured Waveform Data
    • DSP Channel (optional)
    • Automatically Measure Waveform Parameters
    • Cycle Statistical Calculation
    • Wave Window Trigger
    • Linear Scaling
    • Go/NO-GO Judgements
    • User-Defined Math Functions (optional)
  • Display and Data Recording Functions
    • Real-Time Hard Drive Recording (optional)
    • Memory Back
    • Voice Memo Function (optional)
    • up Function
    • Snapshot Function
    • X-Y Display Function
    • All-Channel Menu
    • Wide Waveform Display

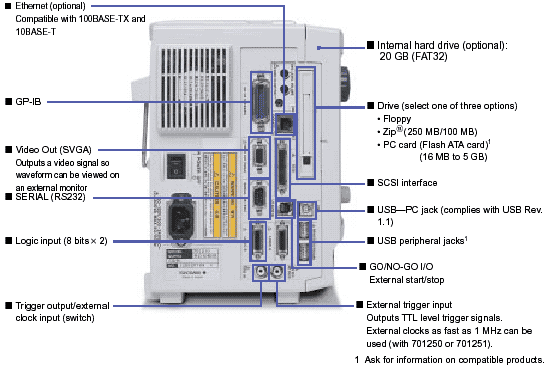

  • Complete Connectivity
    • Connection with Peripheral Equipment
    • USB
    • Ethernet (optional)
    • IMAGE SAVE Key and Thumbnail Screen Images
  • Integration of a High-Speed sampler (Oscilloscope) and Low-Speed sampler (Recorder) in a Single Unit
    High-speed sampler: Trigger on abnormal high-speed phenomena
    Low-speed in a sampler: Roll recording (trend recording)
  • Separate Memory Management for Each sampler
    Maximum memory for low-speed: 100 MW
    Maximum memory for high-speed: 10 kW * 100 screens
  • High-Speed Sampling Triggered Only by Abnormal Events Occurring during Long-Term Observation (Low-Speed Sampling)
    Effective for separately capturing data at high speed
  • Long Memory Equivalent to 1 Teraword (1012)
    To acquire many hours of data at the higher sampling rate (10 MS/s) would require Teraword of memory:
    (8 hr to 24 hr) × 60 min × 60 sec × 10 MS/s × 16 channels = 4.6 to 138 TW

Contact TestWorld today for the best price on the Yokogawa DL750 ScopeCorder.

Explore Financial options to find a cost management solution best for your company:

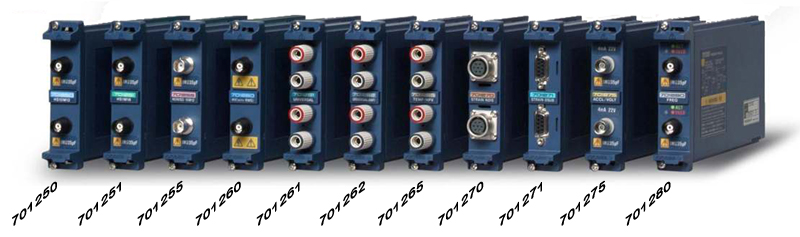

Configurable Modules for the Yokogawa DL750:

  • 701250 High-Speed 10 MS/s 12-Bit Isolation Module
    Broad bandwidth (3 MHz) and high accuracy (0.5%) inputs
  • 701251 High-Speed 1 MS/s 16-Bit Isolation Module
    High resolution inputs combined with high-sensitivity (1 mV/div)
  • 701255 High-Speed 10 MS/s 12-Bit Non-Isolation Module
    Non-isolated model with the same performance as the model 701250
  • 701260 High-Voltage 100 kS/s 16-Bit Isolation Module (with RMS)
    850 V (DC+ACpeak) direct input, RMS mode support
    Accuracy of 0.25%
  • 701261/701262 Universal Module (2CH)
    Multiple inputs of general-use voltage and temperature module, two isolated inputs (Voltage: 5mV/div-20V/div, 100kS/s, 16bit; Temperature: TC- K, E, J, T, L, U, N, R, S, B, W, Iron-Doped, Gold/Chromel, 500S/s), two types of modules: with or without AAF (Anti-Aliasing Filter)
  • 701265 Temperature/High-Precision Voltage Module
    100 Hz frequency range, high-accuracy (0.08%) voltage measurements, and ultra high-sensitivity range value (100 µV/div)
  • 701270 Strain Modules NDIS-type
    Wide ranges of bridge voltage (2 V, 5 V, & 10 V)
    Accuracy of 0.5%
  • 701271 Strain Modules DSUB-type
    Wide ranges of bridge voltage (2 V, 5 V, & 10 V)
    Accuracy of 0.5%
  • 701275 Acceleration/Voltage Module (2 CH)
    Inputs for both acceleration and voltage, built-in AAF (anti-aliasing filter), supports built-in amp type acceleration sensors (4 mA/22 V), isolated input.
  • 701280 Frequency Module (2 CH)
    High speed (40 µs, 25 kHz) update rates, 0.01 Hz-200 kHz frequency range, 9 measurement modes, built-in real-time digital filters, deceleration/stop prediction, offset observation function, isolated input, multiple input types (direct input from electromagnetic pickups, 300 Vrms AC power supply input, contact input, chatter elimination function)
