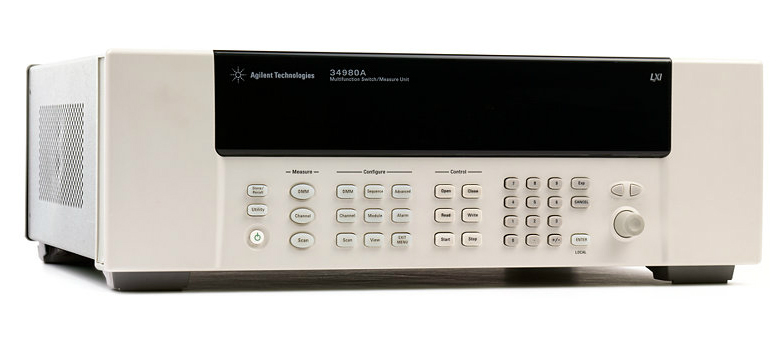

Keysight (Agilent/HP) 34980A Multifunction Switch/Measure Unit

Keysight (Agilent/HP) 34980A Multifunction Switch/Measure Unit

Product Documentation

Description

The Keysight (Agilent/HP) 34980A handles system switching up to 26.5 GHz and provides basic measurements and system control. It also offers DMM measurements, counter/ totalizer functionality, digital I/O with pattern capabilities, and analog outputs with basic waveforms— all in one low-cost, compact box. And with its standard connectors and software drivers, computer-standard I/O, and Web browser interface, the 34980A easily integrates into electronic functional test and data acquisition systems.

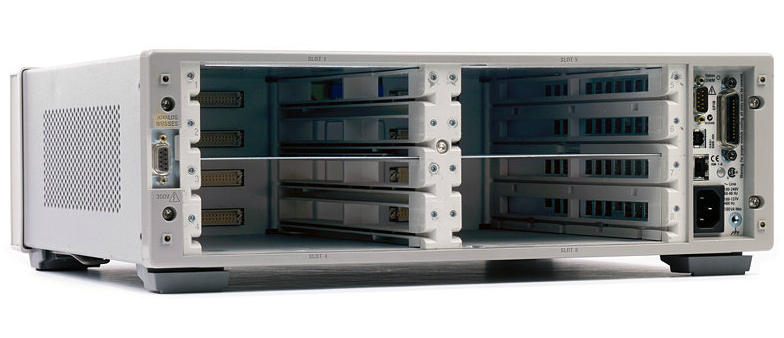

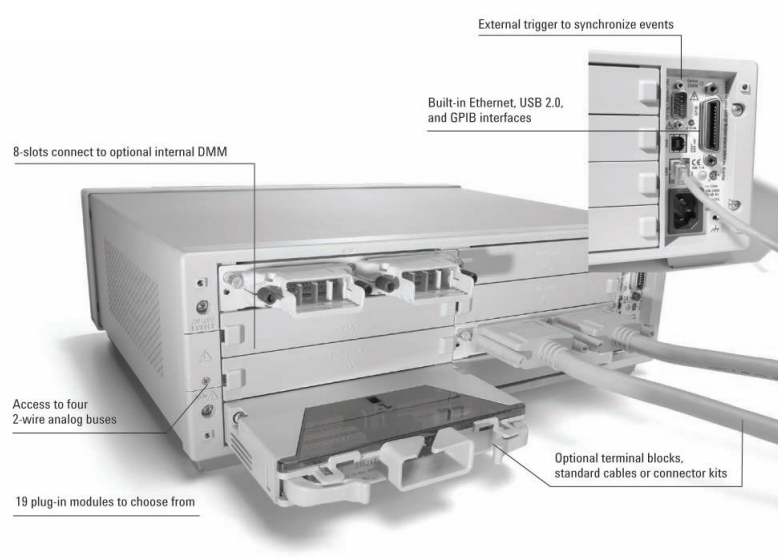

The Keysight (Agilent/HP) 34980A Multifunction Switch/Measure Unit accommodates up to 8 plug-in modules to give you the flexibility you need. Choose from 21 different modules to define your own configuration. You can buy what you need now and add to it or reconfigure it as your requirements change.

Whether you are measuring temperature, AC or DC voltage, resistance, frequency, current, or custom measurements, the 34980A offers the functionality you need in a single box. Switch in different measurements with high-performance signal switching up to 300V with no external signal conditioning required. Choose between different switch types and topologies with frequency ranges from DC to 26.5 GHz. The Keysight (Agilent/HP) 34980A offers high-density multiplexers for scanning multiple channels, matrices for connecting multiple points at one time, and general purpose switches for simple control and high power needs.

Use the Keysight (Agilent/HP) 34980A to route individual signals or monitor multiple signals over a specified period of time—monitor a single channel or multiple channels, set alarms, and identify irregularities.

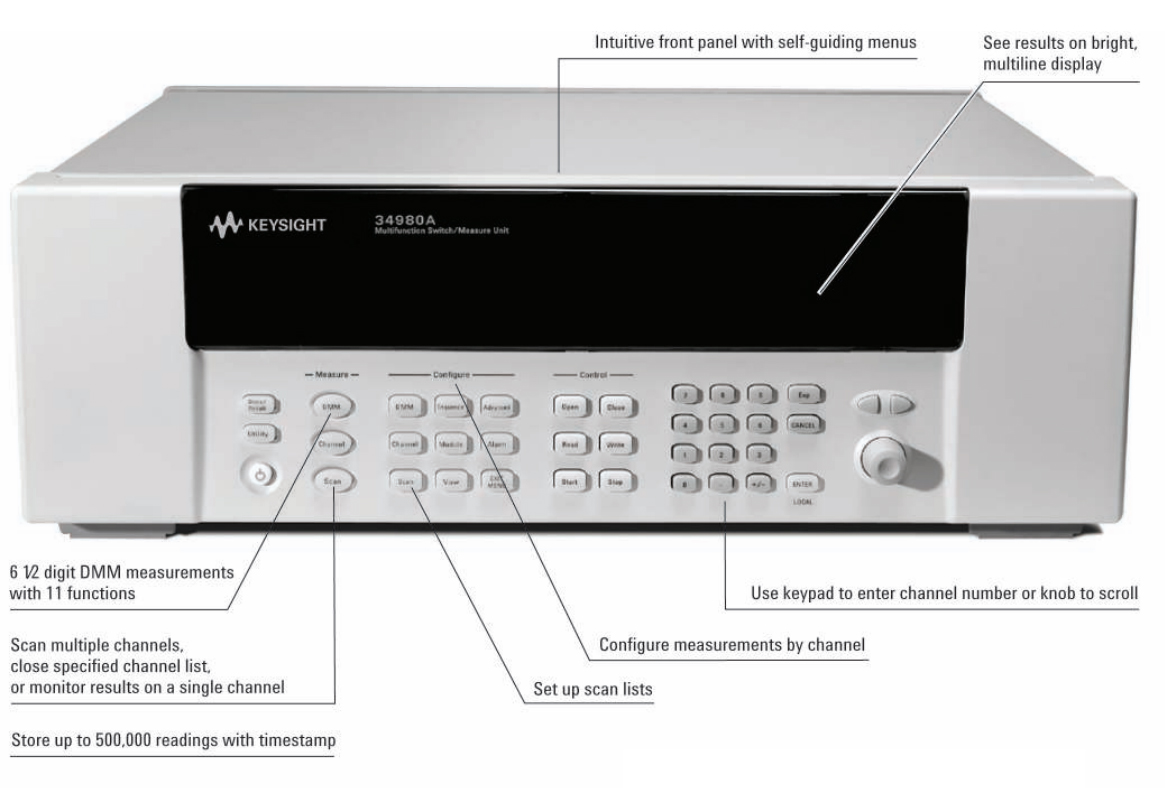

Features of the Keysight (Agilent/HP) 34980A:

  • Eight-slot mainframe, choice of 21-plug-in modules (see below for details)
  • Built-in DMM with 6½ digits (22 bits) of resolution
  • Scan rates of up to 1000 channels/second
  • Standard LAN, USB, and GPIB connectivity to PC, LXI compliant
  • Easy remote access with built-in Web interface
  • Priced up to 40% less than comparable module solutions in VXI or PXI
  • Up to 560 2-wire mux or 4096 matrix cross-points in one mainframe
  • Free BenchLink Data Logger software for easy data collection and analysis

Contact TestWorld today for the best price on the Keysight (Agilent/HP) 34980A Multifunction Switch/Measure Unit. Rental and financing/lease options available.

Modules Available with the Keysight (Agilent/HP) 34980A:

  • Multiplexer Modules
    • 34921A 40-channel armature multiplexer w/low thermal offset with screw connectors (order 34921T for temp reference)
    • 34923A 40/80-channel reed multiplexer
    • 34925A 40/80-channel optically isolated FET multiplexer
    • 34922A 70-channel armature multiplexer 2 – 78-pin Dsub, Male
    • 34924A 70-channel reed multiplexer 2 – 78-pin Dsub, Male
  • Matrix Modules
    • 34931A Dual 4×8 armature matrix 2 – 50-pin Dsub, Male
    • 34932A Dual 4×16 armature matrix 2 – 50-pin Dsub, Male
    • 34933A Dual/quad 4×8 reed matrix 2 – 50-pin Dsub, Male
    • 34934A Quad 4×32 reed matrix 2-78-pin Dsub, Male
  • General Purpose/Actuator Modules
    • 34937A 32-channel Form C/Form A general-purpose switch 2 – 50-pin Dsub, Male
    • 34938A 20-channel 5-amp Form A switch 2 – 50-pin Dsub, Male
    • 34939A 64-channel Form A Switch 2 – 78-pin Dusb, Male
  • RF & Microwave Modules
    • 34941A Quad 1×4 50-ohm 3-GHz RF multiplexer
    • 34942A Quad 1×4 75-ohm 1.5 GHz RF multiplexer (20 – Mini SMB)
    • 34945A Microwave switch/attenuator driver
    • 34946A Dual 1×2 SPDT terminated microwave switch (6 SMA)
      • Option 001: No switches installed
      • Option 004: 4 GHZ switches installed
      • Option 020: 20 GHz switches installed
      • Option 026: 26.5 GHz switches installed
    • 34947A Triple 1×2 ww unterminated microwave switch (9 SMA)
      • Option 001: No switches installed
      • Option 004: 4 GHZ switches installed
      • Option 020: 20 GHz switches installed
      • Option 026: 26.5 GHz switches installed
  • System Measurement and Control Modules
    • 34950A 64-bit digital I/O with memory and counter
    • 34951A 4-channel isolated D/A converter with waveform memory (DMM option required for calibration)
    • 34952A Multifunction module with 32-bit DIO, 2-ch D/A and totalizer
    • 34959A Breadboard module (26- & 40-pin internal ribbon cable connectors)
