Description

If you are an experienced scope user, you know that your measurements are only as good  as your probing system. And  as bandwidth increases, it’s increasingly important to ask the question: am I measuring  my circuit or my scope probe? Nothing is more frustrating than chasing down an apparent design problem, only to find that it was caused by an inferior scope probe. Together, the newest Agilent Infiniium scopes and the breakthrough Agilent InfiniiMax high-performance probing systems offer an end-to-end measurement system with unmatched performance, accuracy, and connectivity. The result is measurements you can trust and better insight into your circuit behavior.

The Keysight (Agilent) 86100C Infiniium DCA-J Wideband Oscilloscope Mainframe combines extremely high accuracy and repeatability with outstanding ease of use to simplify characterizing signals from 50 MHz to 80 GHz. Digital designers can combine the mainframe and modules into four key instruments with industry leading signal integrity performance, including:

• A full-function oscilloscope with bandwidth in excess of 80 GHz, ensuring the most accurate waveform measurements

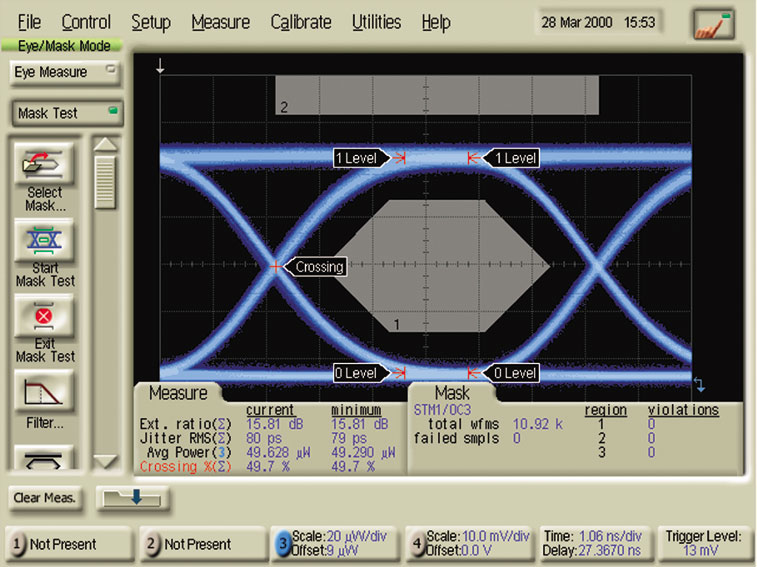

• A digital communications analyzer with automated eye diagram analysis for transmitter compliance testing
• The industry’s most accurate jitter and interference analyzer, measuring subcomponent jitter sources with one-button ease of use
• A full-function time domain reflectometer (TDR/TDT) for high precision impedance and S-parameter analysis

Key Features for the Keysight (Agilent) 86100C:

• Accurate compliance testing of optical transceivers
• Automated jitter and amplitude interference decomposition
•  Internally generated pattern trigger
•  Modular platform for testing waveforms to 40 Gb/s and beyond
• Broadest coverage of data rates with optical reference receivers, electrical channels, and clock recovery
• Built-in S-parameters with TDR measurements
•  Compatible with Agilent 86100A/B-series, 83480A-series,and 54750-series modules
• Open operating system – Windows® XP Pro

Contact TestWorld today for the best price on the Keysight (Agilent) 54855A Infiniium 6-GHz Bandwidth Oscilloscope 4 Channels.
