Teledyne LeCroy – ST-20 is optical and electrical — quickly becoming a dominant form of data transmission, fast and accurate analysis becomes a priority. The LeCroy SDA integrates all the key tests into one device while providing
powerful standard and optional jitter packages. Here are a few key measurements that are part of this powerful analyzer’s capabilities:
- Eye patterns with violation locator
- Accurate and repeatable jitter analysis
- Precision numerical clock recovery with adjustable PLL response
- Bit error analysis
- 1 ps jitter noise floor
- Compliance testing for a broad range of standards

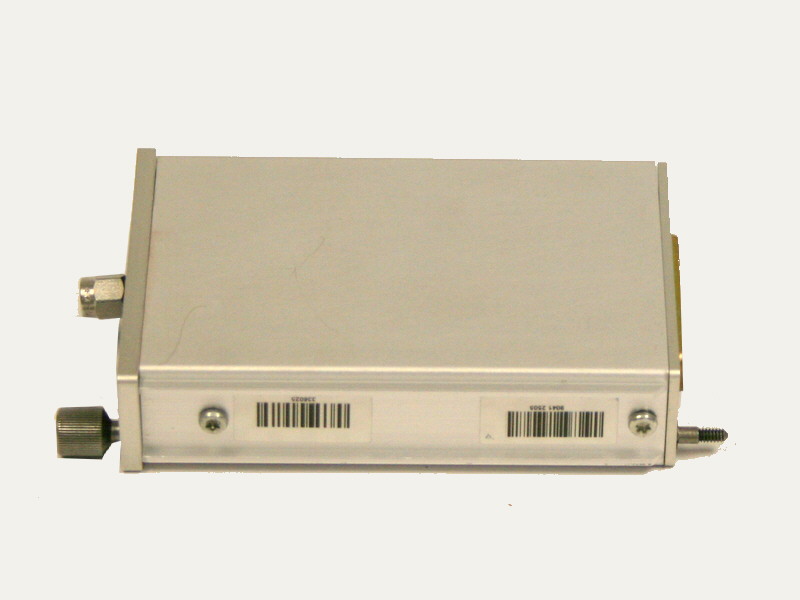

20 GHz Electrical Sampling Head with TDR for use with the SDA100G Sampling Mainframe
Teledyne LeCroy – ST-20 Specifications
- InfiniBand™
- PCI Express®
- Fibre Channel(133 Mb/s to 4.25 Gb/s)
- USB 2.0 (HS signal quality)
- IEEE 1394b (jitter and eye pattern)
- SONET/SDH (up to OC48/STM16)
- Gigabit Ethernet 1000Base-SX, 1000Base-LX
- RapidIO (Parallel/Serial)
- Serial Attached SCSI
- 1000Base-LX4 (XAUI)
- Serial ATA (1.5 Gb/s and 3.0 Gb/s
Teledyne LeCroy – ST-20 Analysis
- Eye patterns
- Jitter analysis (including total, random and deterministic)
- Signal rise/fall and overshoot
- Extinction ratio and Q factor
- Standards compliance
