Description

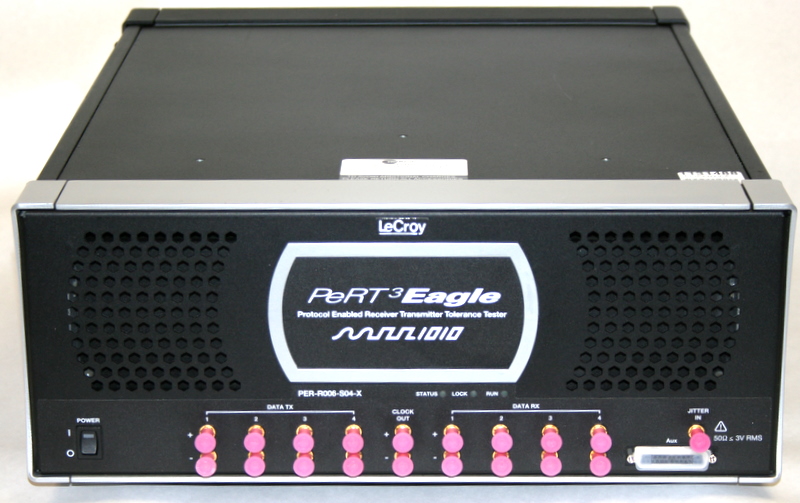

The PeRT3 (Protocol-enabled Receiver and Transmitter Tolerance Tester) fills the space between physical layer test and protocol test, providing a new and more intelligent capability for performance testing of receivers and transmitters. Designed to meet the test needs of engineers working with serial data transceivers and other high-speed serial data communication systems, the LeCroy PeRT3 Test System is not just a new instrument, it is an entirely new instrument class.
Key Features
- Bit Error Rate tester with protocol aware capabilities
- Comprehensive jitter generation capability for receiver jitter and noise tolerance testing
- Built in 3 tap de-emphasis generator
- Protocol aware generator and receiver and state machines
- User defined test scripting functions for jitter tolerance, equalization optimization search, and multi-parameter sweep testing
- User Customizable State Machines for protocol handshake and link training
Specification
| Generator Data Out | Generator Jitter Stress | |||
| Bit Rate | 1 Gb/s to 8.5 Gb/s | Random Jitter Source | ||
| Step Size | 100Khz | 10 Khz – 1.5Mhz RMS Jitter | 1.2 – 9 pSec RMA | |
| Rise/Fall Time (20-80%) | 35 pSec typical | 1.5 Mhz- 100Mhz RMA Jitter | 1.2 – 12 pSec RMS | |
| Differential Amplitude Range | 50mV to 2.2V, 5mV steps | 1.5 Mhz – 1000Mhz RMS Jitter | 1.2 – 12 pSec RMS | |
| Voltage Offset | -2V to +2V | Sinusoidal Jitter Source | ||
| Intrinsic Jitter | 12 pSec pp typical with internal clock | 10 Khz- 100Khz Jitter | 100 – 15000 pSec | |
| De-Emphasis | 100Khz – 500Khz Jitter | 100 – 2000 pSec | ||
| # taps | 3 | 0.5 Mhz – 1000Mhz Jitter | 0 – 300 pSec | |
| Range | -0.5dB to -9dB | Common Mode Source | ||
| Step | 0.1dB | 100Mhz – 1000Mhz Jitter | 50 – 350 mV | |
| SSC Support | 23Khz-33Khz | Sinusoidal waveform | ||
| -5000ppm to +5000ppm | Differential Mode Source | |||
| Triangular/Sinusoidal waveforms | 100Mhz – 2500Mhz Jitter | 0 – 30 mV | ||
| Connector: | K-Type female | Sinusoidal waveform | ||
| Interface | Differential or single-ended, DC coupled, 50 ohm | External Jitter Injection | ||
| Single error inject: | Adds single error on demand | Frequency range | 0.5 ~ 100 Mhz | |
| Generator Clock Out | Modulation range | 1 ~ 200 pSec | ||
| Clock Rate | At rate divided by any integer between 1-255 | Input impedance | 50 ohms | |
| Duty cycle | 40-60% | Amplitude range | 60-600 mV | |
| Amplitude | 0.1 Vpp-Diff to 2Vpp-Diff | Interface | DC coupled, 50 ohms | |
| Output voltage window | -2V-2V | Connector | SMA female | |
| Interface | Differential or single-ended, DC coupled, 50 ohm | Data In | ||
| Connector | SMA female | Data Rates | 1 Gb/s to 8.5Gb/s | |
| Input impedance | 50ohms | |||
| Protocol Supported | Amplitude range | 200 – 1800 mV | ||
| PCI Express | 2.5, 5 and 8 Gb/s | Clock In | ||
| SAS | 1.5, 3 and 6 Gb/s | Frequency range | 1 Ghz to 8.5 Ghz | |
| SATA | 1.5, 3 and 6 Gb/s | Termination | 50 ohms | |
| USB3.0 | 5Gb/s | Amplitude range | 600 – 1200 mV | |
| Tigger Out | ||||
| Amplitude range | 600 – 800 mV | |||
| ISI | External | |||
