Description

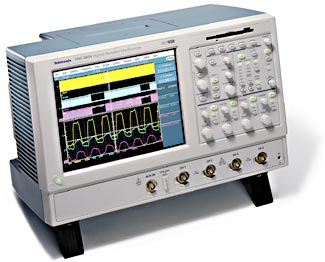

The Tektronix TDS5034B 350 MHz Digital Phosphor Oscilloscope delivers 350 MHz bandwidth, 5 GS/s real-time sample rate, up to 16 M record length, and a suite of advanced triggers, enabling you to capture and characterize even your most demanding signals. DPOs provide unmatched insight into signal behavior by displaying, storing, and analyzing complex signals in real time using three dimensions of signal information: amplitude, time, and distribution of amplitude over time. The TDS5034B DPO model, enabled by Tektronix proprietary DPX acquisition technology, deliver greater than 100,000 waveforms per second capture rates. Some oscilloscope vendors claim high waveform capture rates for short bursts of time, but only DPOs, enabled by DPX technology, can deliver these fast waveform capture rates on a sustained basis – saving minutes, hours, or even days by quickly revealing the nature of faults so sophisticated trigger modes can be applied to isolate them.

The Tektronix TDS5034B 350 MHz Digital Phosphor Oscilloscope includes a complete parametric measurement system for signal characterization. Select from 53 automatic measurements using a graphical palette that logically organizes measurements into Amplitude, Time, Combination, Histogram, and Communications categories. Gather further insight into your measurement results with statistical data such as mean, min, max, standard deviation, and population. Waveform cursors make it easy to measure trace-to-trace timing characteristics, while cursors that link between YT and XY display modes make it easy to investigate phase relationships and Safe Operating Area violations. Define and apply math expressions to waveform data for on-screen results in terms that you can use. Access common waveform math functions with the touch of a button. Or, for advanced applications, create algebraic expressions consisting of waveforms sources, math functions, measurement values, scalars, and user-adjustable variables with an easy-to-use calculator-style editor.

Applied measurement extensions can be installed to enhance the Tektronix TDS5034B’s capabilities. These software applications build on the precision acquisition performance of the Tektronix TDS5034B to address the need for application-specific measurements to quickly quantify device and system performance. Optional applications include power measurement and analysis, jitter and timing analysis, disk drive measurements, ANSI/ITU telecom pulse compliance, and Ethernet compliance testing.

Applications for the Tektronix TDS5034B:

• Digital Design and Debug
• Mask Testing for Telecomm/Datacomm/Video Standards
• Investigation of Transient Phenomena
• Power Measurements
• Video Design and Debug
• DVD, Jitter and Timing, Spectral Analysis
• Automotive Electronics
• Manufacturing Test
• Electro-mechanical
• Bio-medical
• Industrial Control

General Specifications of the Tektronix TDS5034B:

• 350 MHz Bandwidth (Analog)
• 4 Channels
• Up to 5 GS/s Sample Rate
• Up to 16 M Record Length
• 100,000 wfms/s Maximum Waveform Capture Rate
• MyScope Custom Control Windows Enhance Productivity
• Right Mouse-click Menus for Exceptional Efficiency
• OpenChoice® Platform with Windows 2000 delivers Built-in Networking and Analysis
• Small Footprint / Lightweight
• 10.4 in. Bright Display
• Suite of Advanced Triggers
• Communication Mask Testing
• Pass/Fail Limit Testing
• Remote Viewing and Control
• E-mail on Event
• CD-RW Drive
• Interoperability with Tektronix Logic Analyzers
• GPIB Controller

Contact TestWorld to get the best pricing on a used/refurbished Tektronix TDS5034B 350 MHz Digital Phosphor Oscilloscope. Rental and financing/lease options available.
