Description

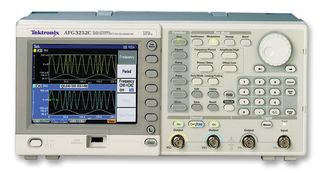

These arbitrary Tektronix AFG3251C 240 MHz, 1 Gs/s, 14 Bit Arbitrary Function Generator function generators allow you to choose from 12 different standard waveforms and generate waveforms up to 128 K in length at high sampling rates. All models feature a highly stable time base, intuitive user interface, and shortcut keys for direct access to frequently used functions and parameters.

Large active LCD displays all relevant waveform parameters and graphical wave shapes at a single glance. Dual-channel models let you generate two identical or completely different signals. Easily import waveforms from any Tektronix oscilloscope with the included PC software, increasing efficiency and productivity.

Tektronix AFG3251C  Specifications:

Channels -1

Sine -1 µHz to 240 MHz

Arbitrary -1 mHz to 120 MHz

Sample rate- 1 GS/s: (2 to 16 K); 250 MS/s: (>16 K to 128 K)

Modulation- AM, FM, PM, FSK, PWM, burst

Power- 107 to 240 VAC, 47 to 63 Hz, or 115 VAC, 360 to 440 Hz
