Description

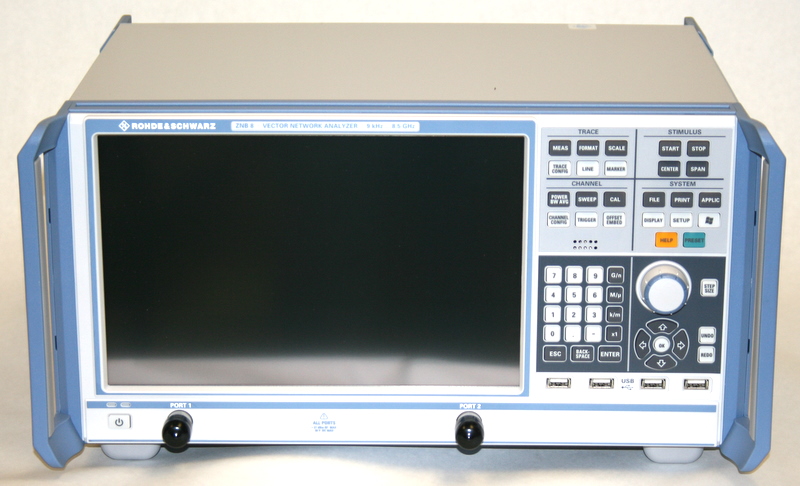

More than 60 years of experience in the field of vector network analysis pay off: Rohde & Schwarz once again sets new benchmarks ? with the R&S?ZNB vector network analyzers. The new family of network analyzers features high measurement speed, outstanding precision and exceptional ease of operation.
Key Facts
- Frequency range from 9 kHz to 40 GHz
- Wide dynamic range of up to 140 dB
- Short sweep times of 4 ms for 401 points
- High temperature stability of typ. 0.01 dB/°C
- Wide power sweep range of 98 dB
- Wide range of IF bandwidths from 1 Hz to 10 MHz
- Manual and automatic calibration
- Large, high-resolution 12.1″ screen
- Touchscreen user interface
- Two or four test ports
- Four-port model with two independant generators
Features & Benefits
- Designed to meet the highest standards
- Wide dynamic range from 9 kHz for fast measurements on high-blocking DUTs
- Excellent raw data for high basic accuracy
- High temperature stability for long calibration intervals
- Fast synthesizers for high measurement speed
Specifications
Frequency range from 9 kHz to 40 GHz
Wide dynamic range of up to 140 dB
Short sweep times of 4 ms for 401 points
