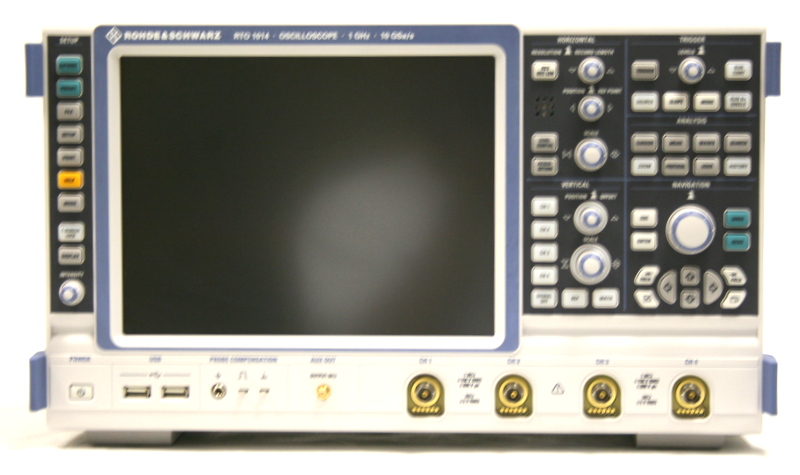

Rohde & Schwarz – RTO1014 4CH 1GHz 5 GS/SEC Digital Oscilloscope

Rohde & Schwarz – RTO1014 4CH 1GHz 5 GS/SEC Digital Oscilloscope

Description

The R&S RTO oscilloscopes combine excellent signal fidelity, high acquisition rate and the world’s first realtime digital trigger system with a compact device format in the 600 MHz up to 4 GHz class. They offer hardware-accelerated measurement andanalysis functions as well as an advanced user interface.

Features & Benefits

  • Find signal faults fast
    • One million waveforms per second: fault finding
    • High acquisition rates without limitation of functionality
    • Fast error analysis with the history view function

Key Facts

  • Find signal faults fast
  • Hardware-accelerated analysis
  • Highly accurate digital trigger system
  • New ease of operation
  • Convincing accuracy
  • Logic analysis with MSO option

Specifications

Vertical system
Input channels R&S®RTO1002/R&S®RTO1012/ R&S®RTO1022 2
R&S®RTO1004/R&S®RTO1014/ R&S®RTO1024/R&S®RTO1044 4
Analog bandwidth (–3 dB) at 50 Ω R&S®RTO1002 and R&S®RTO1004 600 MHz
R&S®RTO1012 and R&S®RTO1014 1 GHz
R&S®RTO1022 and R&S®RTO1024 2 GHz
R&S®RTO1044 4 GHz
Rise time (calculated) R&S®RTO1002 and R&S®RTO1004 583 ps
R&S®RTO1012 and R&S®RTO1014 350 ps
R&S®RTO1022 and R&S®RTO1024 175 ps
R&S®RTO1044 100 ps
Input impedance 50 Ω ±1.5 %
1 MΩ ±1 % with15 pF (meas)
Input sensitivity max. bandwidth in all ranges 50 Ω: 1 mV/div to 1 V/Div
1MΩ: 1 mV/div to 10 V/Div
ENOB of the A/D converter full-scale sine, frequency < –3 dB bandwidth > 7 bit (meas)
Acquisition system
Realtime sampling rate R&S®RTO1002/R&S®RTO1004/
R&S®RTO1012/R&S®RTO1014/
R&S®RTO1022/R&S®RTO1024
10 Gsample/s on each channel
R&S®RTO1044 max. 10 Gsample/s on 4 channels,
max. 20 Gsample/s on 2 channels
Memory depth standard configuration, per channel/1 channel active R&S®RTO: 2-channel-model: 20 /40 Msample
R&S®RTO: 4-channel-model 20 /80 Msample
max. upgrade (R&S®RTO-B102 option),
per channel/1 channel active
R&S®RTO: 2-channel-model: 100 /200 Msample
R&S®RTO: 4-channel-model: 100 /400 Msample
Max. acquisition rate continuous aquisition and display,
10 Gsample/s, 1 ksample
1 000 000 waveforms/s
ultra-segmented-mode < 300 ns blind time
Decimation modes any combination of decimation mode and waveform arithmetics on up to 3 waveforms per channel Sample, Peak Detect, High Resolution,
Root Mean Square
Waveform arithmetics off, envelope, average
