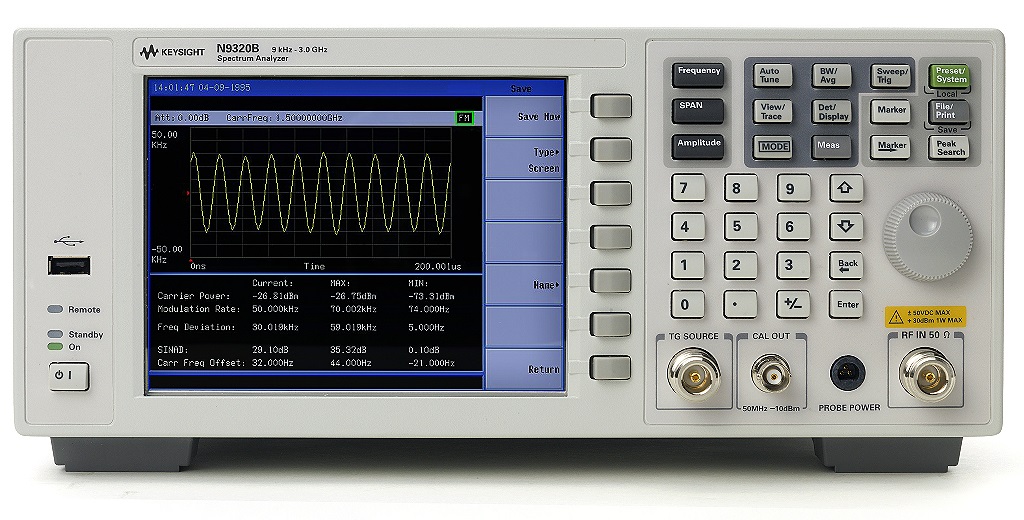

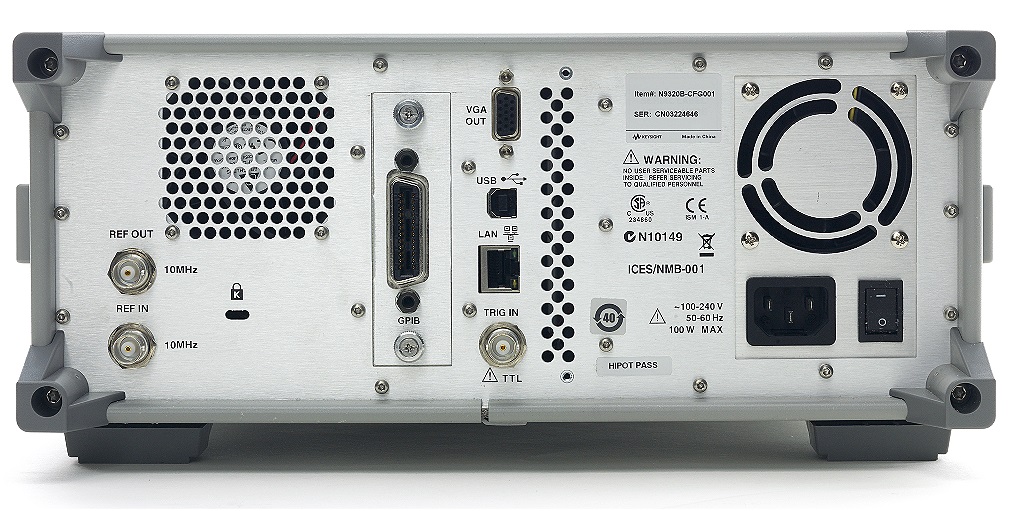

Keysight (Agilent) N9320B RF Spectrum Analyzer, 9 kHz to 3 GHz

Keysight (Agilent) N9320B RF Spectrum Analyzer, 9 kHz to 3 GHz

Product Documentation

Description

Regardless of whether your application is electronics’ manufacture, bench repair, RF education or R&D projects, you need a spectrum analyzer that is equipped with the essential functionality, required performance at an affordable price. The Keysight (Agilent) N9320B RF Spectrum Analyzer, 9 kHz to 3 GHz is designed to be the right answer for you.

Enhanced power measurement and easy automated test programming features

  • The accuracy of frequency selective power measurements when characterizing your products is very important. With a newly featured digital IF, the N9320B provides measurement accuracy and speed you need to accomplish tasks easily
  • Power meter functionality is a standard feature built-in with Keysight U2000 series power sensor support for highly accurate RF and MW power measurements
  • Direct access to perform one-button power measurement functions offer channel power, ACP, OBW, SEM and TOI measurements
  • For automated test programming, the N9320B provides industry standard SCPI language support and connectivity choices with USB and LAN. SCPI code compatible with Keysight ESA-L Series enables easy migration from ESA-L to the N9320B

Professional performance for spectrum analysis from 9 kHz to 3 GHz

  • Minimum non-zero span sweep time: < 10 ms
  • Resolving power RBW: 10 Hz to 1 MHz
  • Sensitivity DANL: -130 dBm, -148 dBm with preamp on
  • Overall amplitude accuracy: ±0.5 dB

Robust measurement features for characterizing your product easily

  • Built-in power measurements: channel power, OBW, ACP, SEM and TOI
  • Built-in power meter function with Keysight U2000 series power sensor support
  • Optional tracking generator and preamplifier
  • Optional AM/FM, ASK/FSK demodulation capability

Accessibility and ease-of-use at your finger tips

  • Customized power-on or “preset” enabled setups
  • Standard USB and LAN interface
  • Multiple language graphic user interface
  • Free remote control PC software

Contact TestWorld today for the best price on the Keysight (Agilent) N9320B RF Spectrum Analyzer, 9 kHz to 3 GHz.

Explore Financial options to find a cost management solution best for your company:

Keysight (Agilent/HP) 8561EC Standard Configuration:

  • RF Input Connectors: Type N female, 50 Ω
  • VSWR: < 1.5:1 300 kHz to 3 GHz, input attenuator ≥ 10 dB
  • Calibration output:
    • Amplitude -10 dBm ± 0.3 dB
    • Frequency 50 MHz
    • Accuracy Same as the frequency reference
    • Connector and impedance BNC-type female, 50 Ω
  • Probe power Voltage/current:
    • +15 V, 150 mA maximum
    • -12.6 V, 150 mA maximum

Keysight (Agilent/HP) 8561EC Configurable Options:

N9320B-AMA US$ 681
N9320B-DMA US$ 873
N9320B-EMF US$ 316
N9320B-G01 US$ 681
N9320B-PA3 US$ 681
N9320B-PLG Continental European power cord – ONLY FOR EU DISTR W MULT PWR CORD STANDARDS US$ 0
N9320B-TG3 US$ 2,551
N9320B-TR1 US$ 3,715
N9320B-UK6 Commercial calibration certificate with test data US$ 227
