Description

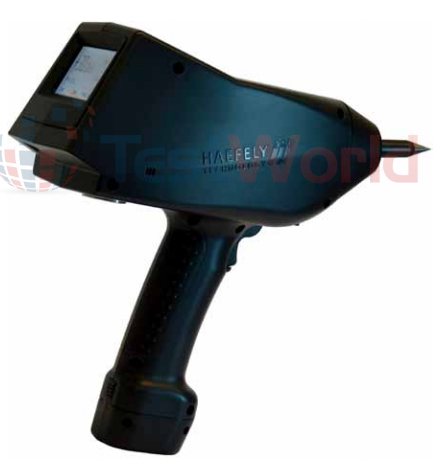

The Haefely ONYX is a state of the art electrostatic discharge simulator available in 16 kV or 30 kV versions. It is the most ergonomic 30 kV ESD gun without an additional base control unit that can be battery or mains operated. The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the Haefely ONYX Electrostatic Discharge ESD Simulator, 16kV & 30kV Models in all types of test sites.
The smart key button, integrated into the trigger button has various functions that can be defined by the user including polarity switching, LED light, counter reset, voltage stepping up/down and others. The Haefely ONYX also features a unique self test which verifies all of the main components of the unit are working correctly. This ensures that accurate and reliable tests are performed every time the gun is used.
Features & Benefits::
- Flexibility – enables users to meet many different test specifications with maximum cost effectiveness.
- Quick and simple – one touch operation and simple on screen menu structure.
- Mobility – the most ergonomic 30 kV ESD gun on the market without an external base control unit.
- Reliable and economical – A Swiss made product, reliability, service and support in a budget-friendly package.
- User defined ‘smart key’ function
- Touch screen interface
- Ergonomic design
- All-in-one design (no base unit)
- Predefined tests according to standards
- Define, store and load tests
- User changeable RC networks
- Automatic polarity switching
- Remote control
- Battery or mains operation, long battery life
- Multilingual
Standards:
- IEC/EN 61000-4-2 Edition 2 (2009)
- IEC/EN 61326
- IEC/EN 61000-6-1 & -6-2
- IEC 61340-3-1
- ISO 10605
- GMW 3097
- Ford AB/AC
- ANSI C63.16
- PSA B21 7110
- ISO 14304
- ITU-T K.20
- MIL-STD-331 / -464 / -883 / -1512 / -1514 / -1541 / -1542
- RTCA/DO-160
- JEDEC 22-A114
- GR-78-CORE
- GR-1089-CORE
- and others
Specifications:
- Air discharge voltage 1 .. 16 kV or 1 .. 30 kV Voltage resolution 100 V steps
- Contact discharge voltage 1 .. 16 kV or 1 .. 30 kV Discharge polarity positive & negative
- Discharge repetition single/0.1/0.2/0.5/1/2/5/10/20 Hz Operating modes single & continuous
- Discharge counter 1 .. 9999 Battery life > 16 hrs
- Default R/C – network 150 pF / 330 Ω Power consumption 17 VA
- Dimensions W x H x D 290 x 270 x 110 mm Weight 1.7 kg
