Description

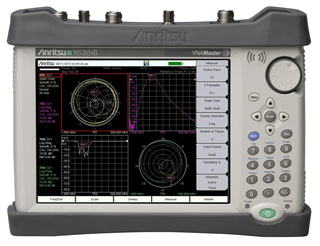

Anritsu MS2034B 6 GHz Handheld Vector Network/Spectrum Analyzer Modern RF/Microwave systems increasingly are pushing their performance to the limits of technology. Designers write tighter specifications on components and define more rigid signal parameters. All of which leaves Field Maintenance Personnel scrambling to find more accurate and higher performance handheld test equipment. Anritsu introduces industry’s most affordable, yet comprehensive solution, the MS2034B VNA Master + Spectrum Analyzer. It’s a Vector Network Analyzer, it’s a Spectrum Analyzer, it’s a Power Meter and it’s a Vector Voltmeter.

It’s tempting to think of the VNA Master as the “Swiss Army Knife of S-Parameters”. But that would be wrong because while a SAK does many different functions, it doesn’t do any one very well. Whereas the VNA Master (500 kHz to 4 GHz) does many measurements very well. Error-corrected VNA technology brings modern accuracy to the field S-parameters, external power sensors measure transmit power accurately and the Vector Voltmeter option phase matches cables with great precision.

Key Features Anritsu MS2034B:

• 2-port, 1-path Vector Network Analyzer (VNA)

Intuitive Graphical User Interface (GUI) with resistive TFT Touch Screen

• Exceptional RF immunity
• 100 dB Transmission Dynamic Range
• Vector Voltmeter option, ideal for cable phase matching

+Spectrum Analyzer (9 kHz to 4 GHz)

• Dynamic Range: > 95 dB in 10 Hz RBW
• DANL: –162 dBm (1 Hz)
• Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz
• Frequency Accuracy: < ±50 ppb with GPS On
• Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
