Description
Demands for energy-saving equipment have been increasing in view of dealing with environmental problems and effectively using energy resources. There are several energy-efficient standards in place, such as the international Energy Star (1995) for home and office automation apparatus and the US Energy Policy Act of 1992 (EPAct) for motors. Meeting these standards requires improving equipment efficiency, thus accurate efficiency measurement has attracted a great deal of attention. The Yokogawa WT1600 is a power meter that was developed to cater to these demands, enabling the efficient measurement of inverter equipment with a single unit.
Yokogawa WT1600 Features:
- High Precision and Wide Bandwidth: DC, 0.5 Hz to 1 MHz
- Basic Power Accuracy: ±0.1%
- Current Input Range: 10 mA to 5 A or 1 A to 50 A
- Voltage Input Range: 1.5 V to 1000 V
- Up to Six Input Elements in one Instrument (3 phase power input from two systems in one unit)
- 50 ms data storing interval
- Standard integration and harmonic measurement functions
- Standard external current sensor input for use with current clamps
Contact TestWorld today for the best price on the Yokogawa WT1600 Digital Power Meter.
Explore Financial options to find a cost management solution best for your company:
Configurations of the Yokogawa WT1600:
Element types and quantities The numbers below Element Number columns have the following meanings.
- 50: 50 A input element
- 5: 5 A input element
- Blank: No element

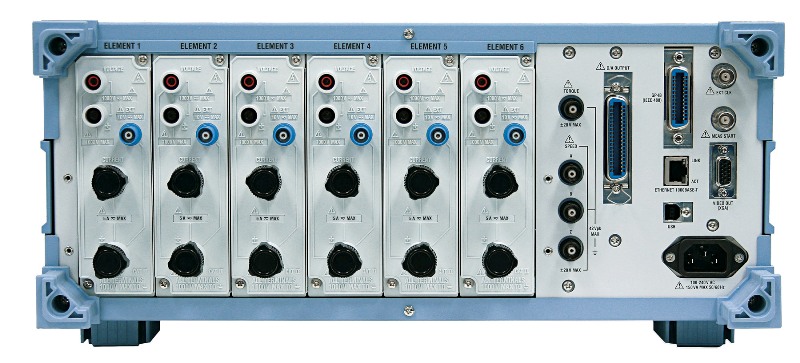

Elements are inserted in the order shown starting on the left side on the back.
| WT1600 Digital power meter main unit | ||||||
| Suffix Code | Element Number | |||||
| 1 | 2 | 3 | 4 | 5 | 6 | |
| -1 | 50 | |||||
| -2 | 50 | 50 | ||||
| -3 | 50 | 50 | 50 | |||
| -4 | 50 | 50 | 50 | 50 | ||
| -5 | 50 | 50 | 50 | 50 | 50 | |
| -6 | 50 | 50 | 50 | 50 | 50 | 50 |
| -10 | 5 | |||||
| -11 | 5 | 50 | ||||
| -12 | 5 | 50 | 50 | |||
| -13 | 5 | 50 | 50 | 50 | ||
| -14 | 5 | 50 | 50 | 50 | 50 | |
| -15 | 5 | 50 | 50 | 50 | 50 | 50 |
| -20 | 5 | 5 | ||||
| -21 | 5 | 5 | 50 | |||
| -22 | 5 | 5 | 50 | 50 | ||
| -23 | 5 | 5 | 50 | 50 | 50 | |
| -24 | 5 | 5 | 50 | 50 | 50 | 50 |
| -30 | 5 | 5 | ||||
| -31 | 5 | 5 | 5 | 50 | ||
| -32 | 5 | 5 | 5 | 50 | 50 | |
| -33 | 5 | 5 | 5 | 50 | 50 | 50 |
| -40 | 5 | 5 | 5 | |||
| -41 | 5 | 5 | 5 | 5 | ||
| -42 | 5 | 5 | 5 | 5 | 50 | 50 |
| -50 | 5 | 5 | 5 | 5 | 5 | |
| -51 | 5 | 5 | 5 | 5 | 5 | 50 |
| -60 | 5 | 5 | 5 | 5 | 5 | 5 |
Options for the Yokogawa WT1600:
- Communication Functions
- -C1: GP-IB
- -C2: Serial (RS-232)
- /B5: Internal Printer
- /C7: SCSI Interface
- /C10: Ethernet, HDD, SCSI
- /DA: 30-Channel DA output
- /MTR: Motor evaluation function
