Description

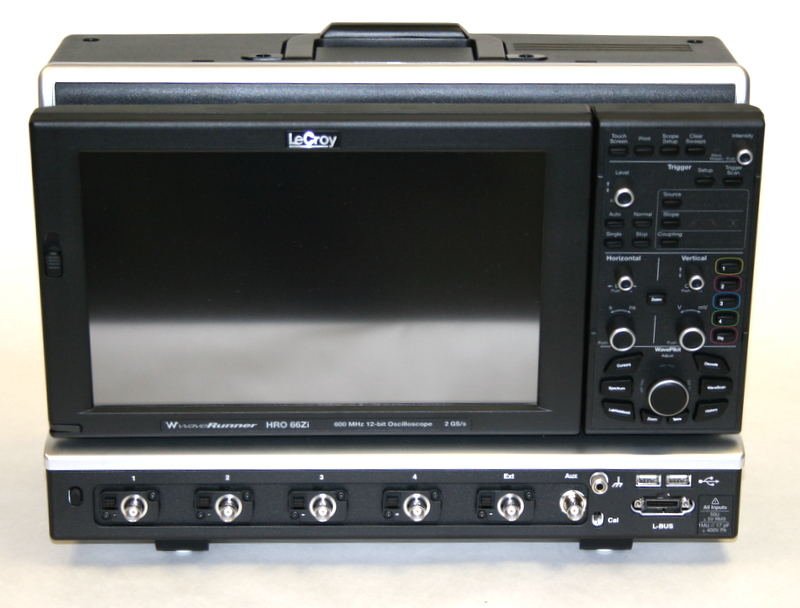

The HRO? 12-bit features an industry leading 12-bit Analog to Digital Convertor (ADC), deep memory of 256 Mpts/Ch, and superior DC accuracy specifications. These features are in addition tothe extensive analysis features of the WaveRunner 6 Zi. Engineers no longer have to compromise high resolution for deep analysis. Designed for the medical,
automotive, power, and electromechanical markets, the HRO 12-bit has higher resolution and measurement precision than 8-bit alternatives. Traditional oscilloscopes use 8-bit ADCs to digitize the data, which is not enough for many applications that require viewing signals with both a large and small voltage component. The reduced noise and improved
resolution of the 12-bit ADC architecture provides finer measurement accuracy and better waveform clarity. This can be seen with the superb 55 dB signal to noise ratio (SNR) and ?0.5% DC vertical gain accuracy, which is up to four times better than typical 8-bit oscilloscopes.

Specifications

Analog Bandwidth @ 50 U (-3 dB) 600 MHz
Analog Bandwidth @ 1 MU (-3 dB) 500 MHz
Rise Time (10-90%, 50 U) 625 ps
Rise Time (20- 80%, 50 U) 435 ps
Time/Division Range Real-Time: 20 ps/div.1000 s/div; RIS mode: 20 ps/div.10 ns/div;
