Description

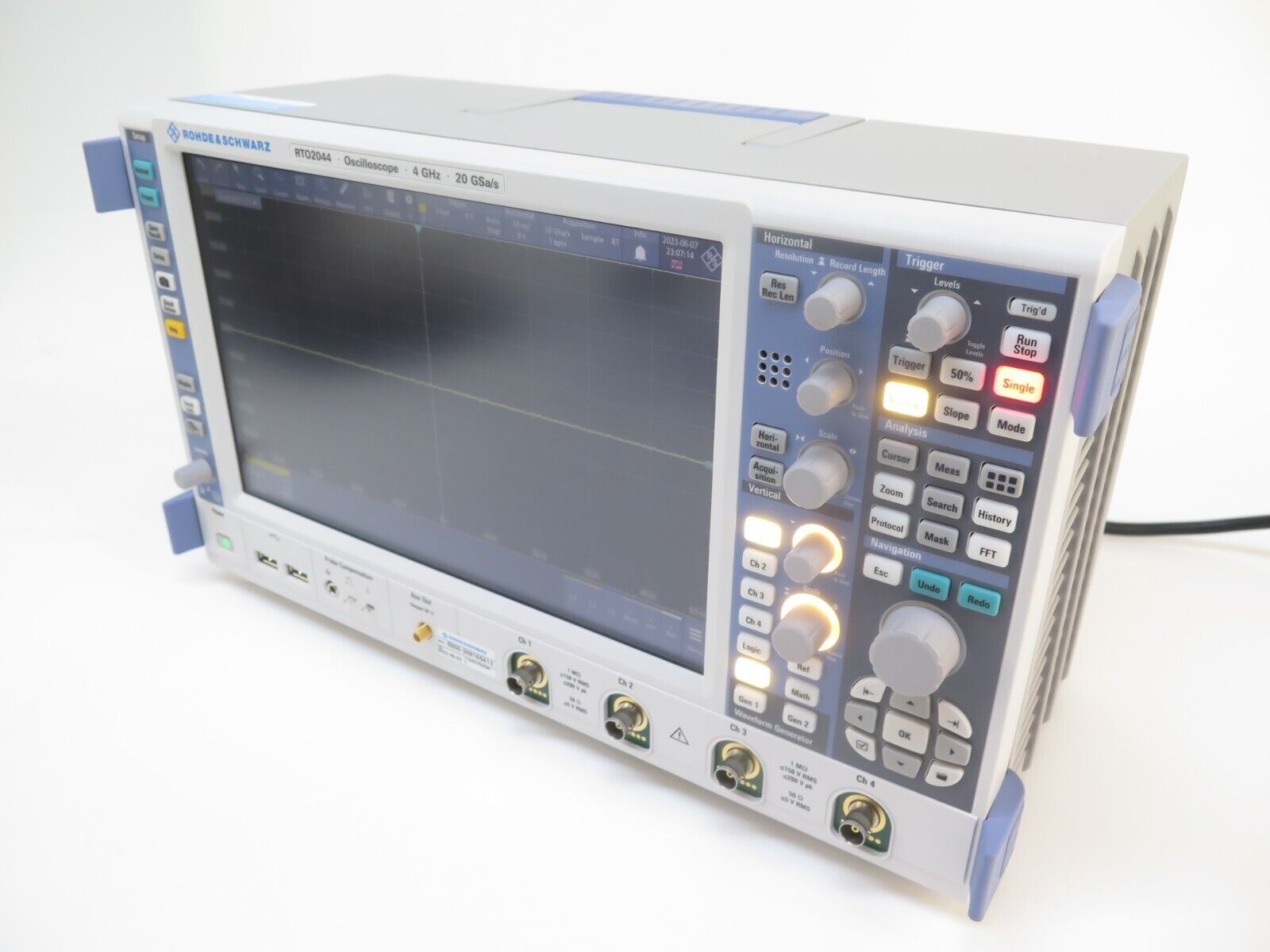

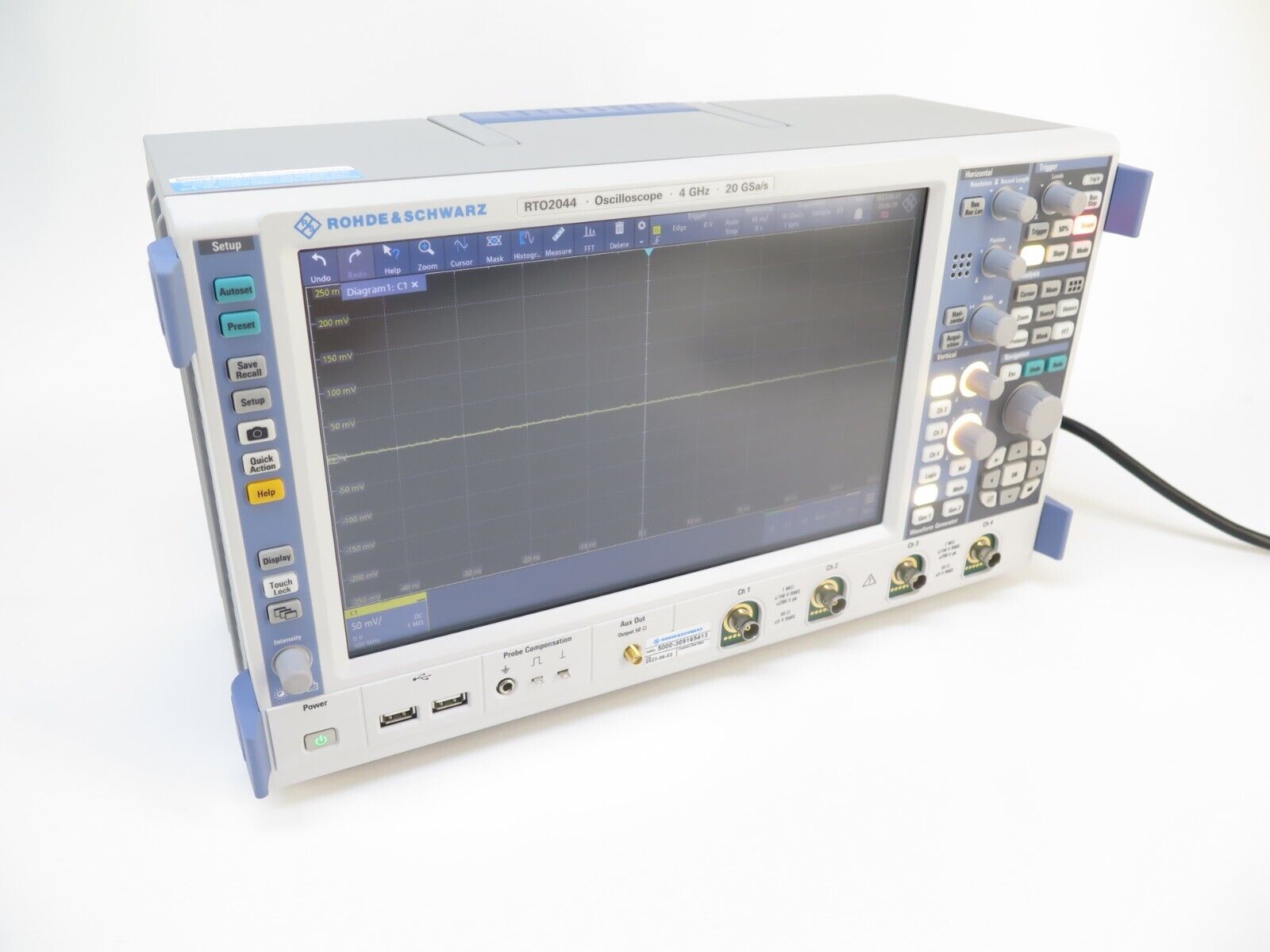

The R&S RTO oscilloscopes combine excellent signal fidelity, high acquisition rate and the world’s first realtime digital trigger system with a compact device format in the 600 MHz up to 4 GHz class. They offer hardware-accelerated measurement andanalysis functions as well as an advanced user interface.
Features & Benefits
- Find signal faults fast
- One million waveforms per second: fault finding
- High acquisition rates without limitation of functionality
- Fast error analysis with the history view function
Key Facts
- Find signal faults fast
- Hardware-accelerated analysis
- Highly accurate digital trigger system
- New ease of operation
- Convincing accuracy
- Logic analysis with MSO option
Specifications
| Vertical system | ||
| Analog channels | R&S®RTO2002/R&S®RTO2012 R&S®RTO2022/R&S®RTO2032 |
2 |
| R&S®RTO2004/R&S®RTO2014 R&S®RTO2024/R&S®RTO2034 R&S®RTO2044/R&S®RTO2064 |
4 | |
| Digital channels (opt.) | 16 | |
| Bandwidth (-3 dB) | R&S®RTO2002 and R&S®RTO2004 | 600 MHz |
| R&S®RTO2012 and R&S®RTO2014 | 1 GHz | |
| R&S®RTO2022 and R&S®RTO2024 | 2 GHz | |
| R&S®RTO2032 and R&S®RTO2034 | 3 GHz | |
| R&S®RTO2044 | 4 GHz | |
| R&S®RTO2064 | on 4 channels: 4 GHz on 2 channels: 6 GHz |
|
| Rise time | R&S®RTO2002 and R&S®RTO2004 | 583 ps |
| R&S®RTO2012 and R&S®RTO2014 | 350 ps | |
| R&S®RTO2022 and R&S®RTO2024 | 175 ps | |
| R&S®RTO2032 and R&S®RTO2034 | 116 ps | |
| R&S®RTO2044 | 100 ps | |
| R&S®RTO2064 | on 4 channels: 100 ps on 2 channels: 76ps |
|
| Input impedance | 50 Ω ±1.5 % 1 MΩ ±1 % at 15 pF (meas.) |
|
| Input sensitivity | max. bandwidth in all ranges | 50 Ω: 1 mV/div to 1 V/div, 500 μV to 1 V (optional); 1 MΩ: 1 mV/div to 10 V/div, 500 μV to 10 V (optional) |
| Acquisition system | ||
| Realtime sampling rate | R&S®RTO200x/201x/202x/203x | max 10 Gsample/s on each channel |
| R&S®RTO2044/2064 | max. 10 Gsample/s on 4 channels max. 20 Gsample/s on 2 channels |
|
| Acquisition memory | standard configuration, per channel/1 channel active | R&S®RTO2000: 2-channel-model: 50 /100 Msample R&S®RTO2000: 4-channel-model 50 /200 Msample |
| max. upgrade (R&S®RTO-B110 option), per channel/1 channel active |
R&S®RTO2000: 2-channel-model: 1/2 Gsample R&S®RTO2000: 4-channel-model: 1/2 Gsample |
|
| Max. acquisition rate | continuous aquisition and display, 10 Gsample/s, 1 ksample |
1 000 000 waveforms/s |
| ultra-segmented-mode | < 300 ns blind time | |
| Decimation modes | any combination of decimation mode and waveform arithmetics on up to 3 waveforms per channel | sample, peak detect, high resolution, root mean square |
| Waveform arithmetics | off, envelope, average | |
| Interpolation modes | linear, sin(x)/x, sample&hold | |
| Deembedding (optional) | yes | |
| Horizontal system | ||
| Timebase range | 25 ps/div to 10,000 s/div | |
| Accuracy (after delivery/calibration) | after delivery/calibration R&S®RTO-B4 option |
±5 ppm ±0.02 ppm |
| Trigger system | ||
| Standard Trigger types | edge, glitch, width, runt, window, timeout, interval, slew rate, data2clock, pattern, state, serial pattern, TV/video | |
| Optional Trigger types | serial bus trigger, zone trigger | |
| Zone trigger (opt.) | in time- and frequency domain | logical combination of max. 8 polygons, intersect or not intersect source: measurement channels, spectrum, math functions |
| Trigger sensitivity | definition of trigger hysteresis | automatic or manually adjustable from 0 div to 5 div |
| Analysis and measurement functions | ||
| Automatic measurements | 47 | |
| Cursor measurements | 4 | |
| Waveform mathematics | advanced (formula editor) | |
| Mask testing | ||
| Mask definition | advanced (user-configurable, hardware based) | |
| Logic analyzer (MSO) functionality | ||
| Digital input channels | 16 | |
| MSO Memory depth | 200 Mpts per channel | |
| MSO Bandwidth | 400 MHz | |
| MSO sampling rate | 5 Gsample/s per channel | |
| General data | ||
| Dimensions | W x H x D | 427 mm x 249 mm x 204 mm (16.81 in x 9.8 in x 8.03 in) |
| Weight | 9.6 kg (21.2 lbs) | |

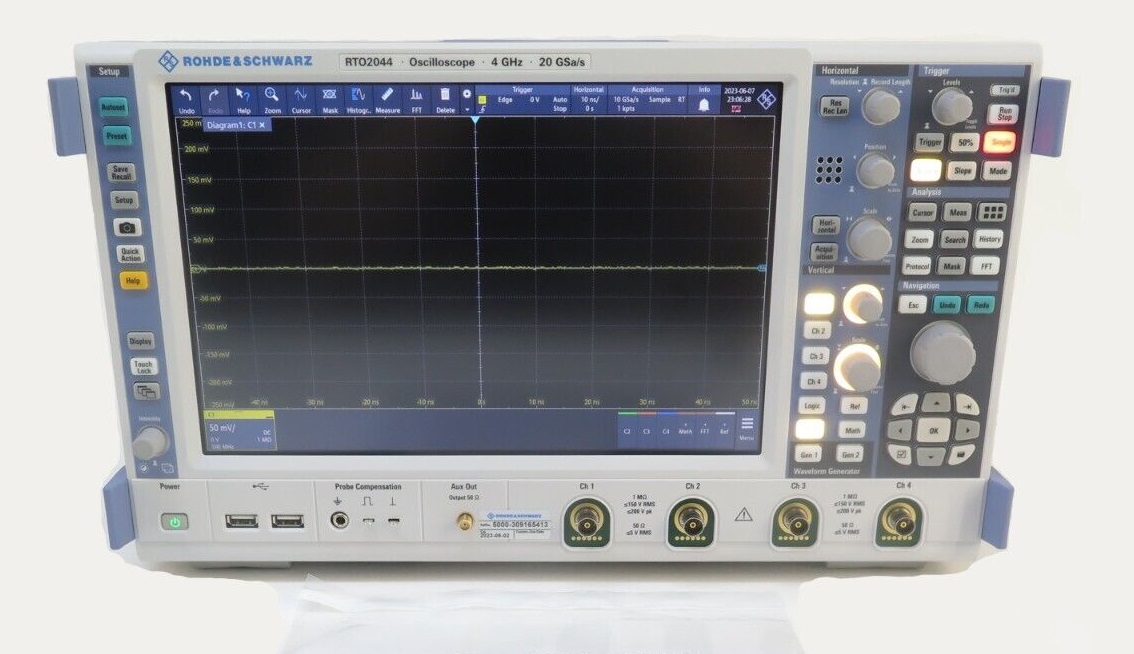

| Display | 12.1″ LC TFT capacitive color touchscreen, 1280 x 800 pixels (XGA) |
|

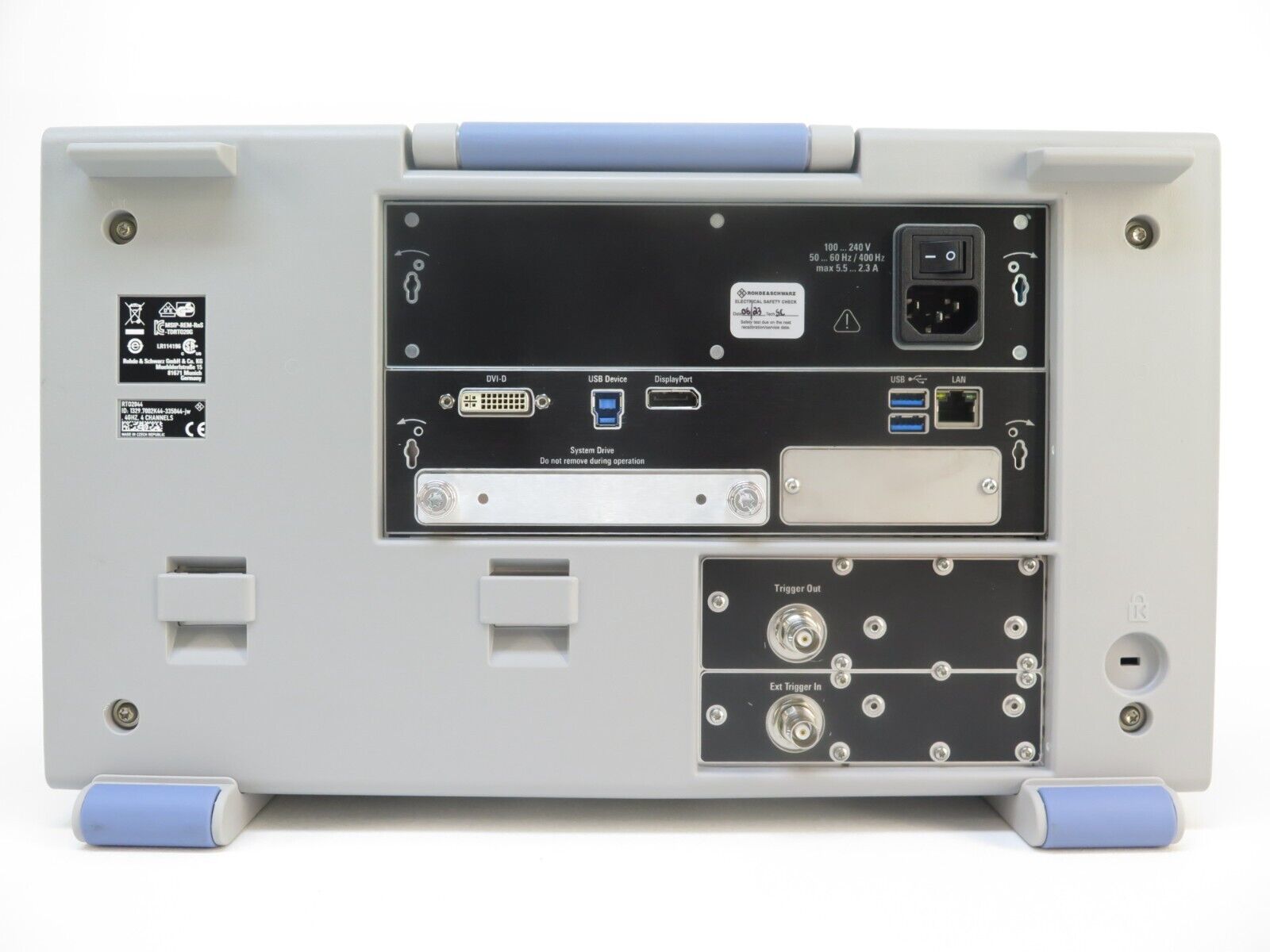

| Interfaces | 1 Gbps LAN, type A: 2 x USB 3.1, 2 x USB 2.0, type B: 1 x USB 3.1, GPIB (optional), DVI and display port for external monitor, external trigger, trigger output | |
| Operating system | Windows | |
