If you are an experienced scope user, you know that your measurements are only as good as your probing system. And as bandwidth increases, it’s increasingly important to ask the question: am I measuring my circuit or my scope probe? Nothing is more frustrating than chasing down an apparent design problem, only to find that it was caused by an inferior scope probe. Together, the newest Agilent Infiniium scopes and the breakthrough Agilent InfiniiMax high-performance probing systems offer an end-to-end measurement system with unmatched performance, accuracy, and connectivity. The result is measurements you can trust and better insight into your circuit behavior.
The Keysight (Agilent) 86108A Precision Waveform Analyzer plug-in module offers unprecedented wavelength and optical filter coverage for SONET/SDH and datacom/enterprise technologies up to 11.3 Gb/s. With this industry-first capability, optical component and equipment manufacturers can perform waveform characterization and test transmitter compliance on multiple networking technologies with a single plug-in module.

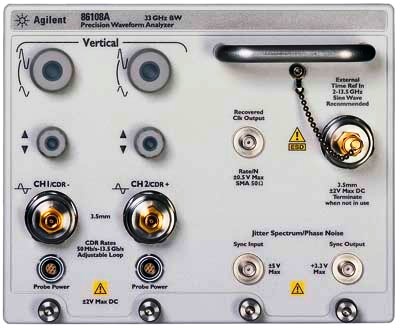

Accuracy and ease-of-use for high-speed digital communications signals. The Keysight (Agilent) 86108A Precision Waveform Analyzer is a plug-in module used with the 86100D DCA-X and 86100C DCA-J mainframes. The 86108A has a bandwidth in excess of 33 GHz, channel noise of less than 300 uV, and residual jitter at an astounding level of under 100 femtoseconds (60 fs typical). Integrated clock recovery provides a ‘triggerless’ single connection measurement on signals from 50Mb/s-14.2Gb/s*, and any rate in between. Perform analysis even in the presence of spread-spectrum clocking.
Key Features for the Keysight (Agilent) 86108A:
Key Features & Specifications
Key features
- High bandwidth, low noise, ultra-low residual jitter view the 86108A overview video
- Simple one connection “triggerless” operation
- PLL characterization including loop BW/jitter transfer
- Integrated HW clock recovery with adjustable loop BW/Peaking-exceeds industry standards for SSC tracking
Serial bus measurements
- Easy setup for serial bus differential signaling (PCI-EXPRESS®, SATA etc.)
Compatibility
- 86100C Infiniium DCA-J Mainframe
- 86100D Infiniium DCA-X Mainframe
Contact TestWorld today for the best price on the Keysight (Agilent) 86108A Precision Waveform Analyzer.
