If you are an experienced scope user, you know that your measurements are only as good as your probing system. And as bandwidth increases, it’s increasingly important to ask the question: am I measuring my circuit or my scope probe? Nothing is more frustrating than chasing down an apparent design problem, only to find that it was caused by an inferior scope probe. Together, the newest Agilent Infiniium scopes and the breakthrough Agilent InfiniiMax high-performance probing systems offer an end-to-end measurement system with unmatched performance, accuracy, and connectivity. The result is measurements you can trust and better insight into your circuit behavior.

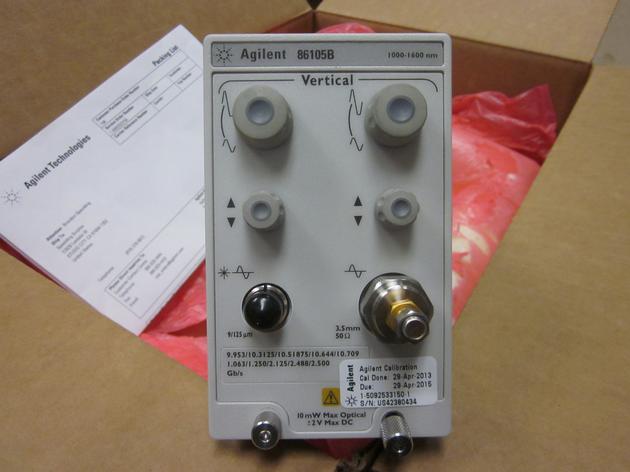

The Keysight 86105B lets you perform transmitter compliance tests of multiple technologies and line rates with a single module. It is now possible to characterize optical transmission performance of SONET, Ethernet, and Fibre Channel technologies, from 155 Mb/s through 10 Gb/s. In addition, new Infiniium DCA firmware now supports mask testing for emerging standards such as optical InfiniBand and electrical XAUI signaling.
- A full-function oscilloscope with bandwidth in excess of 80 GHz, ensuring the most accurate waveform measurements
- A digital communications analyzer with automated eye diagram analysis for transmitter compliance testing
- The industry’s most accurate jitter and interference analyzer, measuring subcomponent jitter sources with one-button ease of use
- A full-function time domain reflectometer (TDR/TDT) for high precision impedance and S-parameter analysis
Key Features for the Keysight (Agilent) 86105B:
15 GHz optical channel for 9/125 fibers
- Wavelength range: 1000-1600 nm
- Characteristic rms noise: 5 uW (10 GHz BW), 10 uW (15 GHz BW)
- Maximum average input power: 2 mW
- Reference receiver capability: see options for supported data rates
20 GHz electrical channel with 3.5 mm male input
- Characteristic rms noise: 0.25 mV (12.4 GHz BW), 0.5 mV (20 GHz BW)
- Maximum input signal: +/- 2 Vdc
Compatibility
- 86100A/B Infiniium DCA Mainframes
- 86100C Infiniium DCA-J Mainframe
- 86100D Infiniium DCA-X Mainframe
