Description
All WavePro 7 35Zi oscilloscopes contain selectable 50 O and 1 MO input capability. The 4 and 6 GHz models include both ProBus and ProLink input types which means eight probes can be attached and then multiplexed from the front panel or by remote control
Key Features & Specifications
- 4 Channel
- 2GHz Bandwidth
- 4GS/s Sample Rate in 4Ch Mode, 8GS/s in 2Ch Mode, 16GS/s in 1Ch Mode
- Standard Memory: 250kpts/ch in 4Ch Mode, 500kpts/ch in 2Ch Mode, 1Mpt/ch in 1Ch Mode
- Color 10.4″ flat-panel TFT-LCD
- RS-232C and GPIB Interfaces
Specifications
- 4 Channel
- 2GHz Bandwidth
- 20 GS/s Sample Rate in 2Ch Mode
- 1Mpt/ch Standard Memory
- 225ps Rise Time (typical)
- Color 10.4 inch Flat Panel TFT-LCD with High Resolution Touch Screen
- 100BaseT Interface

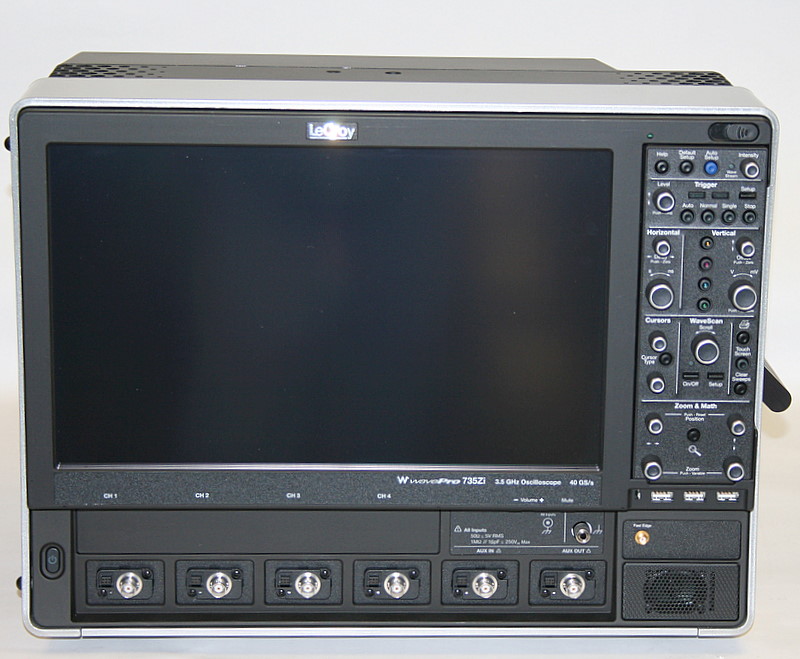

Options for the LeCroy WAVEPRO 735ZI
| DDM | Disk Drive Measurement S/W |
| DFP | Digital Filter Package |
| GP02 | Graphics Printer |
| JPRO | Jitter Pro S/w |
| JTA | Jitter & Timing Analysis S/W |
| LAN10BT | 10baset Ethernet Interface |
| M | Extended Memory: 1mpt/ch In 4ch Mode, 4mpts/ch In 1ch Mode |
| PCMEDIA | 520 Mb Hard Disk Drive/ 512k Sram |
| PCSLOT | Slot For Memory And Hard Disk Drive |
| PMA1 | Pwr Measure Analysis S/w |
| PRML | PRML Analysis Package |
| WAVA | Wave Analyzer S/W |
| XL | Extended Memory: 16 Mpts/ch in 4Ch Mode, 64Mpts/ch in 1Ch Mode |
