Description

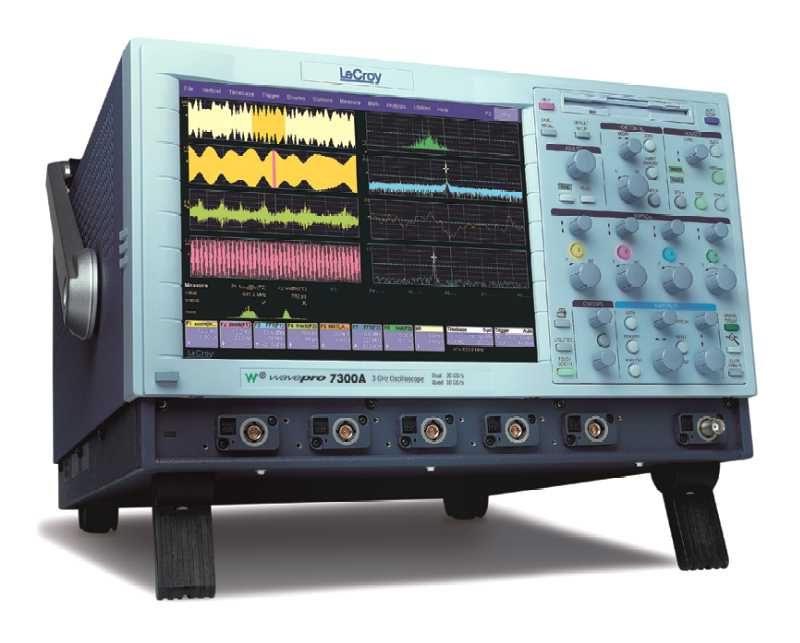

The WavePro 7300A oscilloscope offers the sophisticated analysis capability of a top line oscilloscope with the all-round utility of a general purpose instrument. In 3 GHz bandwidth applications, the WavePro delivers fast, accurate measurements associated more often with high-end lab oscilloscopes. Common Jitter and Timing measurements for clock and timing analysis enhance its capabilities. Wrap this performance in a very attractive price, and the LeCroy WavePro oscilloscope is the ideal solution for your test needs.
Key Features & Specifications
- 4 Channel
- 2GHz Bandwidth
- 4GS/s Sample Rate in 4Ch Mode, 8GS/s in 2Ch Mode, 16GS/s in 1Ch Mode
- Standard Memory: 250kpts/ch in 4Ch Mode, 500kpts/ch in 2Ch Mode, 1Mpt/ch in 1Ch Mode
- Color 10.4″ flat-panel TFT-LCD
- RS-232C and GPIB Interfaces
Specifications
- 4 Channel
- 2GHz Bandwidth
- 20 GS/s Sample Rate in 2Ch Mode
- 1Mpt/ch Standard Memory
- 225ps Rise Time (typical)
- Color 10.4 inch Flat Panel TFT-LCD with High Resolution Touch Screen
- 100BaseT Interface
Options for the LeCroy WAVEPRO 7300A
DDM | Disk Drive Measurement S/W |
DFP | Digital Filter Package |
GP02 | Graphics Printer |
JPRO | Jitter Pro S/w |
JTA | Jitter & Timing Analysis S/W |
LAN10BT | 10baset Ethernet Interface |
M | Extended Memory: 1mpt/ch In 4ch Mode, 4mpts/ch In 1ch Mode |
PCMEDIA | 520 Mb Hard Disk Drive/ 512k Sram |
PCSLOT | Slot For Memory And Hard Disk Drive |
PMA1 | Pwr Measure Analysis S/w |
PRML | PRML Analysis Package |
WAVA | Wave Analyzer S/W |
XL | Extended Memory: 16 Mpts/ch in 4Ch Mode, 64Mpts/ch in 1Ch Mode |
