Description

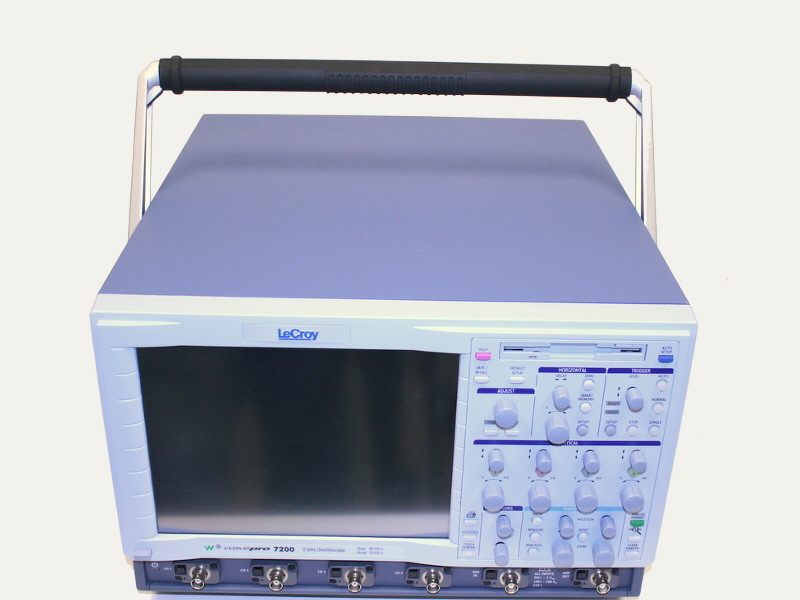

LeCroy’s WavePro 7000 Series brings the ability to conduct next-generation waveform measurements and analysis, not just viewing of signals. LeCroy has integrated X-Stream Technology into the WavePro family and combined it with an intuitive User Interface, giving the user greater confidence in the measurements made. The WavePro 7000 family oscilloscopes are designed for next generation designs, such as datacom/telecom standards development, Gigabit Ethernet, USB 2.0, digital design and debugging, and advanced military designs.
Key Features & Specifications
- 4 Channel
- 2GHz Bandwidth
- 4GS/s Sample Rate in 4Ch Mode, 8GS/s in 2Ch Mode, 16GS/s in 1Ch Mode
- Standard Memory: 250kpts/ch in 4Ch Mode, 500kpts/ch in 2Ch Mode, 1Mpt/ch in 1Ch Mode
- Color 10.4″ flat-panel TFT-LCD
- RS-232C and GPIB Interfaces
Specifications
- 4 Channel
- 2GHz Bandwidth
- 20 GS/s Sample Rate in 2Ch Mode
- 1Mpt/ch Standard Memory
- 225ps Rise Time (typical)
- Color 10.4 inch Flat Panel TFT-LCD with High Resolution Touch Screen
- 100BaseT Interface
Options for the LeCroy WAVEPRO 7200
| DDM | Disk Drive Measurement S/W |
| DFP | Digital Filter Package |
| GP02 | Graphics Printer |
| JPRO | Jitter Pro S/w |
| JTA | Jitter & Timing Analysis S/W |
| LAN10BT | 10baset Ethernet Interface |
| M | Extended Memory: 1mpt/ch In 4ch Mode, 4mpts/ch In 1ch Mode |
| PCMEDIA | 520 Mb Hard Disk Drive/ 512k Sram |
| PCSLOT | Slot For Memory And Hard Disk Drive |
| PMA1 | Pwr Measure Analysis S/w |
| PRML | PRML Analysis Package |
| WAVA | Wave Analyzer S/W |
| XL | Extended Memory: 16 Mpts/ch in 4Ch Mode, 64Mpts/ch in 1Ch Mode |
