Description

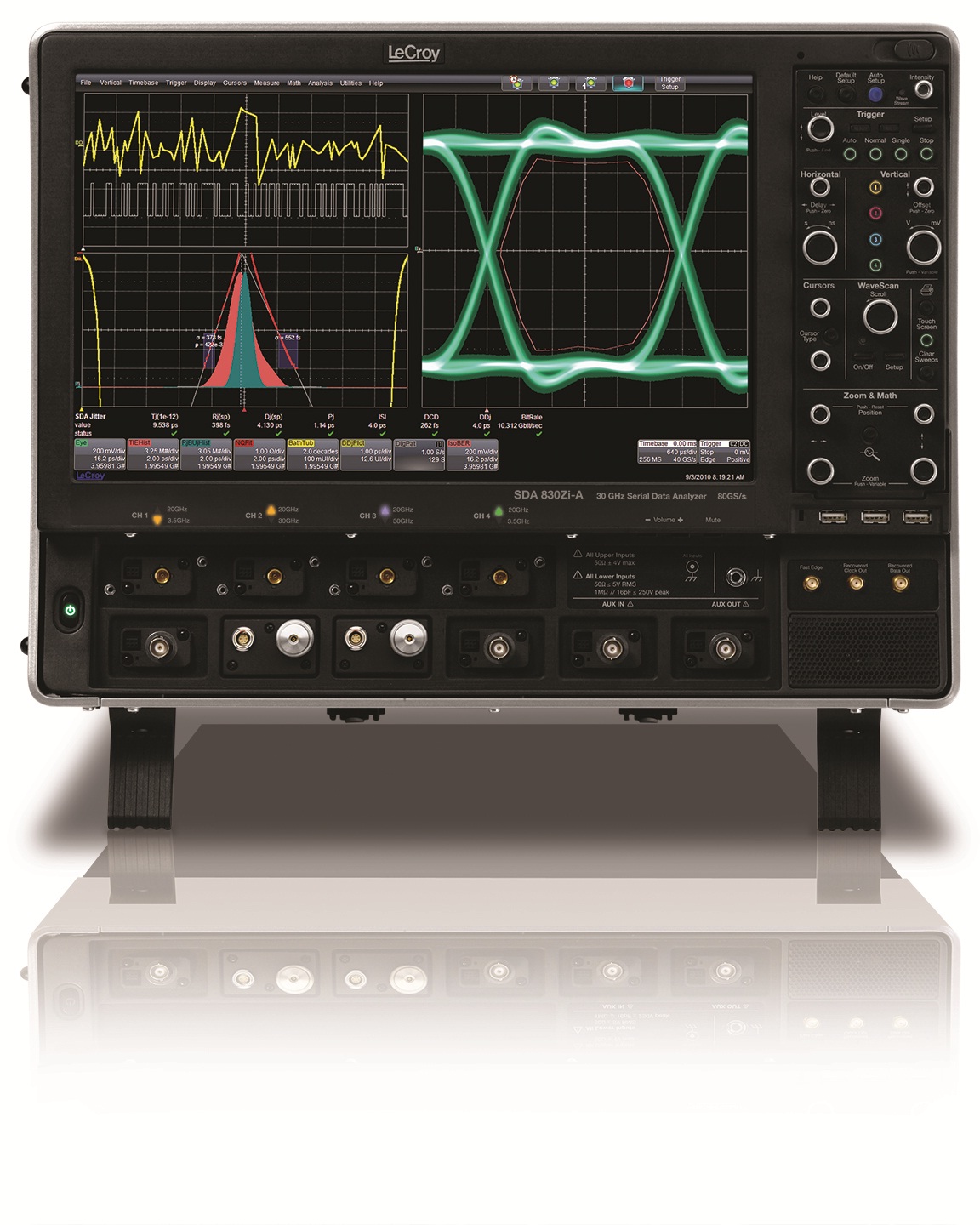

Teledyne LeCroy – SDA-830ZI-A has a bandwidth of up to 45GHz by utilizing widely adopted and proven SiGe processes, custom 2nd generation ASIC designs, and 6th generation Digital Bandwidth Interleave (DBI) technology to achieve unprecedented real-time oscilloscope performance:

45 GHz
120 GS/s
768 Mpts/Ch Analysis Memory

20 GHz/4ch Model

Four channel performance at 20 GHz is pristine with exceptional rise time, overshoot, total and random jitter noise floor, and electrical noise performance. SDAII Serial Data Analysis Software LeCroy’s SDAII software is optimized for fast eye diagram creation on long records, and deep insight of jitter pathologies with more parameters and analysis views to help you understand the root cause of high jitter.
Additional Capability Standard

SDA 8 Zi-A models provide additional capability standard that costs extra in WaveMaster 8 Zi-A models, such as:

• 32 Mpts/ch memory
• SDAII software
• JTA2 software
• SDM and ET-PMT software
• 8b10b decode
• High speed serial trigger

Teledyne LeCroy – SDA-830ZI-A Specifications

• Bandwidth 4 GHz – 45 GHz
• Standard Memory 32 Mpts – 768 Mpts
• Max Memory 768 Mpts/Ch
• Max Sampling Rate 120 GS/s
• Resolution 8-bit

• Industry leading performance—45 GHz bandwidth, 120 GS/s sample rate, 768 Mpts of analysis memory.
• Exceptional 20 GHz (4 input channels) and 30 GHz (2 input channels) signal fidelity performance
• Widest bandwidth upgrade range (4–45 GHz) provides best investment leverage
• Lowest Jitter Noise Floor (125 fsrms) and highly stable over long acquisitions
• Second generation chipsets provide 25% better noise performance
• 15.3″ widescreen (16×9) high resolution WXGA color touch screen display—25% larger than 12.1″ displays
• X-Stream II streaming architecture—10–100 times faster analysis and better responsiveness than other oscilloscopes
• Superior probe + oscilloscope performance
• Superior serial data analysis with SDA II software—more capability to decompose and analyze jitter and determine root cause quickly
• Eye Doctor™ II Advanced Signal Integrity Tools improve signal integrity measurements with real-time de-embedding and emulation capabilities
• on full record lengths
• Deepest toolbox with more measurements, more math, more power
• 325 MB/s data transfer rate from oscilloscope toPC with LeCroy Serial Interface Bus (LSIB) option
• Largest selection of serial triggers and decoders—more than 14—available to provide a total system view
• 50Ω and 1 MΩ inputs with both ProBus and ProLink probe interfaces on all models provide support for every probe manufactured by LeCroy without requiring external adapters or probe amplifiers
