Description

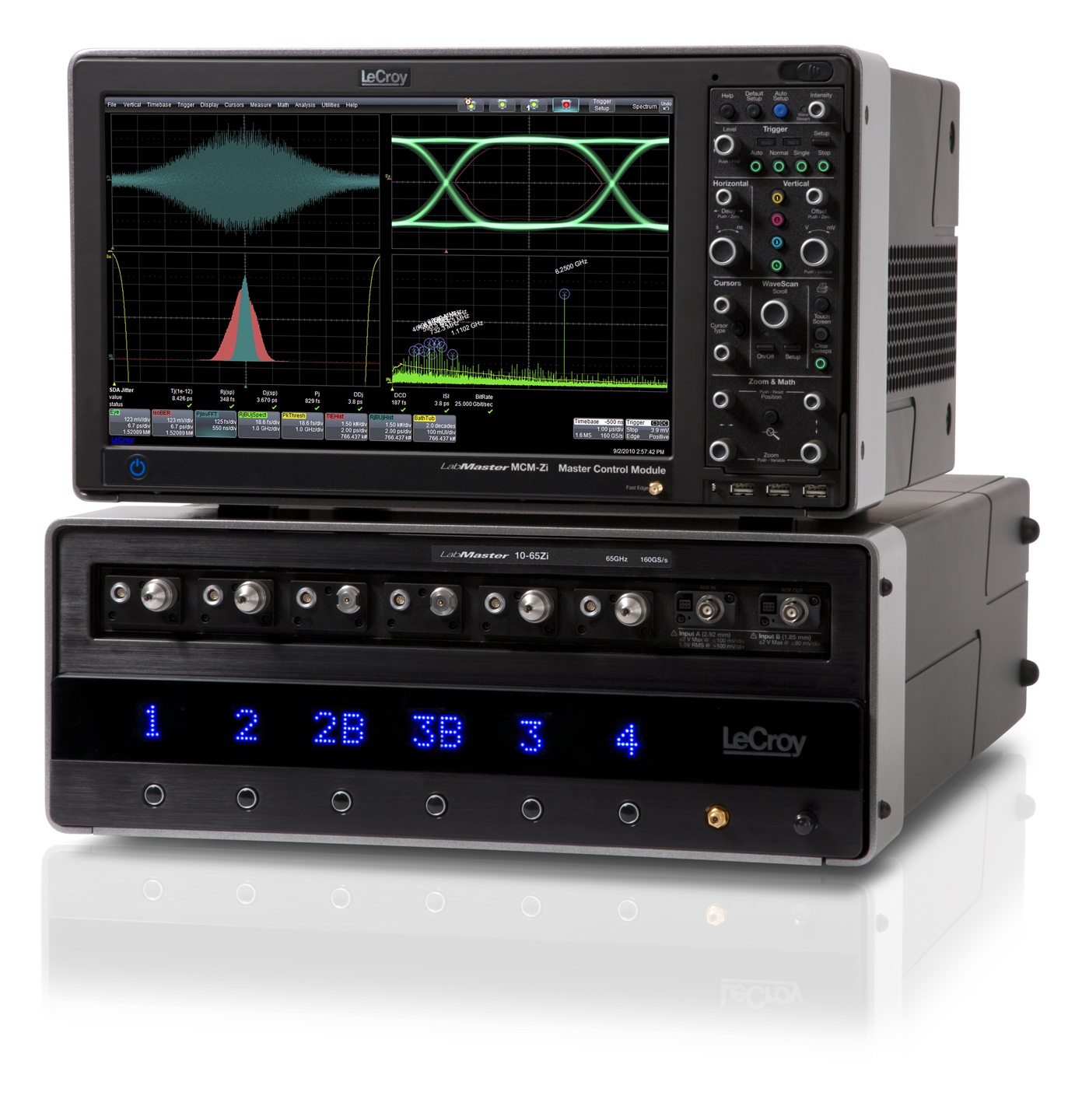

LabMaster 10 Zi leverages the unique LabMaster ChannelSync architecture with next-generation 8HP SiGe chipsets to produce the world?s highest bandwidth, four channel oscilloscope ? 36 GHz. When combined with LeCroy?s patented DBI technology, bandwidth nearly doubles to 65 GHz, with sample rates of 160 GS/s.
Feature
Bandwidth | 20 – 100 GHz |
Starting from | $111,000 |
Standard Memory | 20 Mpts – 1024 Mpts |
Max Memory | 1024 Mpts/Ch |
Max Sampling Rate | 240 GS/s |
Input Channels | 4 to 80 |
Resolution | 8-bit |
Specifications
Vertical System |
|
Bandwidth | 65 GHz |
Analog Bandwidth (Max) | 65 GHz |
Analog Bandwidth @ 50 Ω (-3 dB) (1.85mm Inputs) | 65 GHz (≥10 mV/div) |
Analog Bandwidth @ 50 Ω (-3 dB) (2.4/2.92mm Inputs) | 36 GHz (≥5 mV/div) |
Rise Time (10-90%, 50 Ω) | 6.5 ps (test limit, flatness mode) |
Rise Time (20-80%, 50 Ω) | 4.9 ps (flatness mode) |
Input Channels | Up to 40 @ 65 GHz, Up to 80 @ 36 GHz |
Input Channels | Up to 40, depending on configuration selected. Up to 80 @ 36 GHz. |
Bandwidth Limiters | For ≤ 36 GHz Mode: 1, 3, 4, 6, 8, 13, 16, 20, 25, 30, 33 GHz. For > 36 GHz Mode: 50, 60 GHz. |
Input Impedance | 2.92mm Inputs: 50 Ω+/-2% 1.85mm Inputs: 50 Ω+/-2% |
Input Coupling | 2.92 mm Inputs: 50 Ω: DC, GND 1.85 mm Inputs: 50 Ω: DC |
Maximum Input Voltage | 2.92 mm Inputs: ±2 Vmax@<76mV/div, 5.5Vrms@≥76mV/div 1.85 mm Inputs: ±2 Vmax@≤80mV/div |
Channel-Channel Isolation | DC to 36 GHz: 60 dB (>1000:1) (For any two 2.92mm input channels, same or different v/div settings, typical) 36 to 65 GHz: 40 dB (>100:1) (For any two 1.85mm input channels, same or different v/div settings, typical) |
Vertical Resolution | 8-bits |
Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) |
Sensitivity | 50 Ω (2.92mm): 5 mV-500mV/div, fully variable (5-9.9 mV/div via zoom) 50 Ω (1.85mm): 10 mV-80mV/div, fully variable. Higher gain settings possible through use of external attenuators. |
DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V |
Vertical Noise Floor (50 mV/div) | 4.3 mVrms (typical) |
Offset Range | 50 Ω (1.85 mm): ±500 mV @ 10-80 mV/div 50 Ω (2.92mm): ±500 mV @ 5-75 mV/div ±4 V @ 76 mV/div -500mV/div |
DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (test limit) |
LabMaster 10 Zi leverages the unique LabMaster ChannelSync architecture with next-generation 8HP SiGe chipsets to produce the world’s highest bandwidth, four channel oscilloscope – 36 GHz. When combined with Teledyne LeCroy’s patented DBI technology, bandwidth nearly doubles to 65 GHz, with sample rates of 160 GS/s. Truly extraordinary.
The LabMaster class of oscilloscopes are fundamentally better – they are modular, inherently upgradeable, and infinitely flexible while retaining all of the simplicity of operation that you expect from a conventional oscilloscope. LabMaster 10 Zi oscilloscopes can be configured for massive numbers of channels at up to 65 GHz – truly eliminating your technology and test barriers.
Teledyne LeCroy’s ChannelSync architecture ensures precise synchronization of all acquisition modules. ChannelSyn ensures precise synchronization of all channels in all acquisition modules by using a single-distributed 10 GHz clock and a single trigger circuit. External clocking is not required, and trigger jitter from multiple trigger circuits is non-existent. Jitter between all channels is as low as 130fsrms. Synchronization performance is identical to that provided with a single, standard oscilloscope package, and all captured waveforms and analysis appears on one oscilloscope display.
