Description

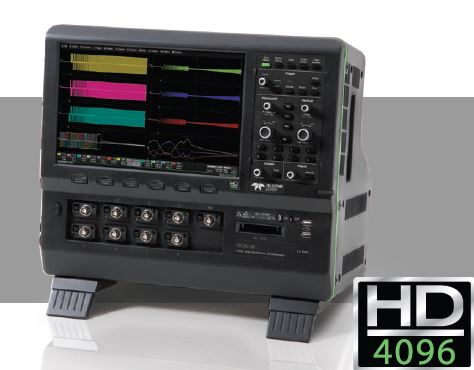

HDO8000 High Definition Oscilloscopes have more channels, more resolution, more bandwidth and more memory than any other midrange oscilloscope. Ideal for debugging and troubleshooting highpower three-phase power electronics, automotive electronics, and embedded/mechatronic designs with high resolution sensor signals. Comprehensive digital logic (MSO), low-speed serial data trigger, decode and analysis toolsets, and the widest variety of probes and application packages complete the solution. Get the most intuitive long-memory analysis using the unique Q-Scape multi-tab display architecture.
Key Features
- 12-bit ADC resolution, up to 15 bit with enhanced resolution
- 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidths
- Long Memory up to 25 Mpts/Ch (50 Mpts interleaved)
- 12.1%22 touch screen display
- WaveScan Advanced Search and Find
- LabNotebook Documentation and Report Generation
- History Mode Waveform Playback
- Spectrum Analyzer Mode
- Power Analysis Software
- Serial Data Trigger and Decode
- 16 Digital Channels with 1.25 GS/s Sample Rate
- Mixed Signal Debug Capabilities
- Analog and Digital Cross Pattern Triggering
- Digital Pattern Search and Find
- Analog and Digital Timing Measurements
- Activity Indicators
Specifications
- Rise time 450 ps
- Bandwidth 1 GHz
- Bandwidth Limiters 20 MHz, 200 MHz
- Input Coupling AC, DC, GND
- Vertical Resolution 12-bits
- Equivalent Sample Rate 125 GS/s
