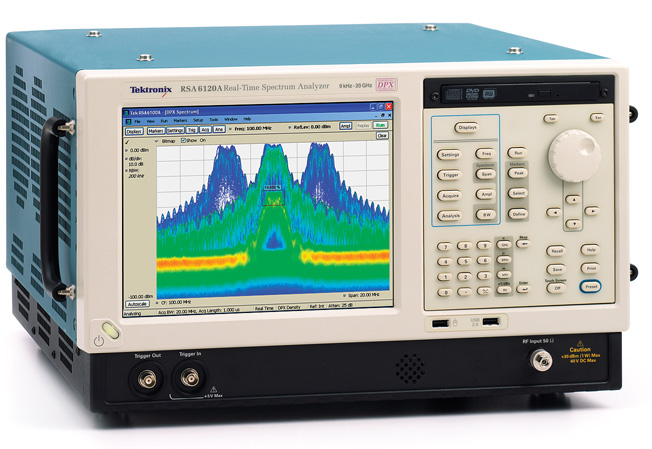

Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer

Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer


Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer Features:

  • High-performance Spectrum Analysis
    • 20 dBm 3rd Order Intercept at 2 GHz, Typical
    • Displayed Average Noise Level –151 dBm/Hz at 2 GHz (–170 dBm/Hz, Preamp On, typical) enables Low-level Signal Search
    • ±0.5 dB Absolute Amplitude Accuracy to 3 GHz for High Measurement Confidence
    • Fully Preselected and Image Free at All Times for Maximum Dynamic Range at Any Acquisition Bandwidth
    • Fastest High-resolution Sweep Speed: 1 GHz sweep in 10 kHz RBW in less than 1 second
  • Discover
    • DPX® Spectrum Processing provides an Intuitive Understanding of Time-varying RF Signals with Color-graded Displays based on Frequency of Occurrence
    • Revolutionary DPX Displays Transients with a Minimum Event Duration of 3.7 μs
    • Swept DPX Spectrum enables Unprecedented Signal Discovery over Full Instrument Span
  • Trigger
    • Trigger on Frequency Edge or Power Level Transients with a Minimum Event Duration of 3.8 μs in the Frequency Domain, 9.1 ns in Time Domain
    • DPX Density™ Trigger Activated Directly from DPX Display
    • Time-qualified and Runt Triggers Trap Elusive Transients
    • Frequency Mask Trigger Captures Any Change in Frequency Domain
  • Capture
    • Up to 1.7 s Acquisitions at 110 MHz Bandwidth can be Directly Stored as MATLAB™ Compatible Files
    • Gap-free Spectrogram Records up to 4444 Days of Spectral Information for Analysis and Replay
    • Interfaces with TekConnect® Probes for RF Probing
  • Analyze
    • Time-correlated Multidomain Displays for Quicker Understanding of Cause and Effect when Troubleshooting
    • Power, Spectrum, and Statistics Measurements help you Characterize Components and Systems: Channel Power, ACLR, Power vs. Time, CCDF, OBW/EBW, and Spur Search
    • AM/FM/PM Modulation and Audio Measurements (Opt. 10)
    • Phase Noise and Jitter Measurements (Opt. 11)
    • Settling Time Measurements, Frequency, and Phase (Opt. 12)
    • Pulse Measurements (Opt. 20) – Over 20 Vector and Scalar Parameters including Rise Time, Pulse Width, Pulse-to-Pulse Phase provide Deep Insight into Pulse Train Behavior
    • General Purpose Digital Modulation Analysis (Opt. 21) provides Vector Signal Analyzer Functionality for Over 20 Modulation Types
    • Flexible OFDM analysis of 802.11a/g/j and WiMAX 802.16-2004

Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer Applications:

  • Spectrum Management – Find Interference and Unknown Signals
  • Radar/EW – Full Characterization of Pulsed and Hopping Systems Characterize Radar and Pulsed RF Signals
  • RF Debug – Components, Modules, and Systems
  • Radio/Satellite Communications – Analyze Time-variant Behavior of Cognitive Radio and Software-defined Radio Systems
  • EMI Diagnostics – Increase Confidence that Designs will Pass Compliance Testing

High-performance Spectrum and Vector Signal Analysis, and a Lot More

The Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer replaces conventional high-performance signal analyzers, offering the measurement confidence and functionality you demand for everyday tasks. A typical 20 dBm TOI and –151 dBm/Hz DANL at 2 GHz gives you the dynamic range you expect for challenging spectrum analysis measurements. All analysis is fully preselected and image free. The RSA6000 Series uses broadband preselection filters that are always in the signal path. You never have to compromise between dynamic range and analysis bandwidth by ‘switching out the preselector’.

A complete toolset of power and signal statistics measurements is standard, including Channel Power, ACLR, CCDF, Occupied Bandwidth, AM/FM/PM, and Spurious measurements. Available Phase Noise and General Purpose Modulation Analysis measurements round out the expected set of high-performance analysis tools.

But, just being a high-performance signal analyzer is not sufficient to meet the demands of today’s hopping, transient signals.

The Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer will help you to easily discover design issues that other signal analyzers may miss. The revolutionary DPX® spectrum display offers an intuitive live color view of signal transients changing over time in the frequency domain, giving you immediate confidence in the stability of your design, or instantly displaying a fault when it occurs. This live display of transients is impossible with other signal analyzers. Once a problem is discovered with DPX®, the Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer can be set to trigger on the event, capture a contiguous time record of changing RF events, and perform time-correlated analysis in all domains. You get the functionality of a high-performance spectrum analyzer, wideband vector signal analyzer, and the unique trigger-capture-analyze capability of a real-time spectrum analyzer – all in a single package.

The patented DPX spectrum processing engine brings live analysis of transient events to spectrum analyzers. Performing up to 292,968 frequency transforms per second, transients of a minimum event duration of 3.7 μs in length are displayed in the frequency domain. This is orders of magnitude faster than swept analysis techniques. Events can be color coded by rate of occurrence onto a bitmapped display, providing unparalleled insight into transient signal behavior. The DPX spectrum processor can be swept over the entire frequency range of the instrument, enabling broadband transient capture previously unavailable in any spectrum analyzer. In applications that require only spectral information, Opt. 200 provides gap-free spectral recording, replay, and analysis of up to 60,000 spectral traces. Spectrum recording resolution is variable from 110 μs to 6400 s per line.

Contact TestWorld today for the best price on a used/refurbished Tektronix RSA6120A 20 GHz Real-Time Spectrum Analyzer.
