Description

Spirent – LAN-3321A Features & Specifications:

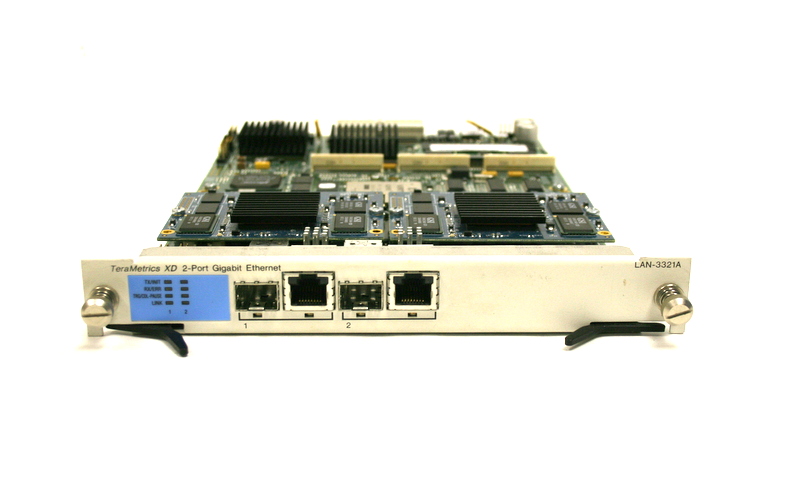

The SmartBits TeraMetrics XD modules offer Dual Media Ethernet connections on every test port. The user can select a 10/100/1000 Mbps connection or a Gigabit Ethernet Fiber connection on each port. Each XD module can simulate the millions of clients and servers necessary to fully stress test a device or network. The SmartBits test system can scale from 2 ports up to 768 test ports. Requires SFP Transceiver for Gigabit Ethernet Fiber testing, order ACC-6025A for Multimode (850 nm) or ACC-6026A for Singlemode (1310 nm).

Spirent – LAN-3321A Specifications

• Dual Media 10/100/1000 Mbps and Gigabit Ethernet Fiber on each port
• Wire-rate traffic generation and analysis at Layers 2 and 3
• Transmit millions of IP flows and analyze CoS and DiffServe information
• Run multiple protocols per port simultaneously to emulate large routed networks
• Realistic higher application traffic and protocol breadth for Layer 4 to 7 testing.

• Provide custom traffic generation for functional testing of network devices.

• Measure maximum data plane performance (through-put, packet loss, average latency, etc.) of networking devices and systems.

• Measure specific control plane performance of net-work-embedded applications such as routing, Multicast IP, MPLS, and security.

• Measure Layer 4 to 7 performance of devices like web servers, firewalls, load balancers, streaming media, SSL accelerators, and IPSec VPNs.

• Dual Media 10/100/1000 Mbps and Gigabit Ethernet Fiber on each port.

• Wire-rate traffic generation and analysis at Layers 2 and 3.
• Transmit millions of IP flows and analyze CoS and DiffServ information.

• Run multiple protocols per port simultaneously to emulate large routed networks. What is emulated on the control plane can be tested with individual flows on the data plane.

• Realistic higher application traffic and protocol breadth for Layer 4 to 7 testing.
