Description
Spirent – LAN-3310A Features & Specifications:

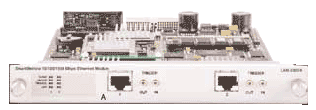

The SmartBits LAN-3311A is a Smartmetrics Ethernet module used to test the performance and interoperability of networking devices. The GBIC-based LAN-3311A supports 1000 Mbps (1 Gbps) over single and multi-mode fiber. Each module is capable of simulating the millions of clients and servers required to fully test network systems. Requires ACC-6002A (multi-mode) or ACC-6003A (single-mode). Occupies one slot in SMB-600 or SMB-6000.
The copper-based LAN-3300A supports rates of 10, 100, and 1000 Mbps. The GBIC-based LAN-3310A sup-ports 1000 Mbps- (1 Gbps) over single- and multi-mode fiber. Each module is capable of simulating the millions of clients and servers required to fully test networksys-tems. The modulesyield per-flow metrics for millions of IP flows used to assess the quality of service provided by Diffserv, IP QoS, and VLAN enabled devices.
Each module is capable of full wire-rate traffic and analysis and com- plies with the 10Base-Tx/100Base-TX IEEE specification in 10/100 Mbps mode and the IEEE 802.3z draft specification in Gigabit mode. Use the LAN-3300A and LAN-3310A with other SmartBits modules to test high-speed internet-working between 10/100/1000 Mbps Ethernet, and either 10/100/1000 Mbps Ethernet, ATM, Frame Relay, PPP, or Packet over SONET (POS) devices.
Spirent – LAN-3310A Applications
- Evaluate key performance parameters of 10/100/1000 Mbps networking devices, such as switches and routers, under typical or extreme traffic load condi-tions.
- Qualify 10/100/1000 Mbps networking devices during development, quality assurance, and final regressiontesting.
- Perform stress and negative testing by injecting errored traffic.
- Perform comparative analysis of 10/100/1000 Mbps networking devices and re-qualify after firmware upgrades.
Spirent – LAN-3310A Key Features
- Stream-based, wire-rate traffic generation and analy-sis.
- Supports autonegotiation.
- Supports frame sizes of 40 to 16,384 bytes.
- Ports are completely independent in operation.
- Generates up to 512 independent IP streams (peer-to-peer) and analyzes up to 64Kstreams.
