Description

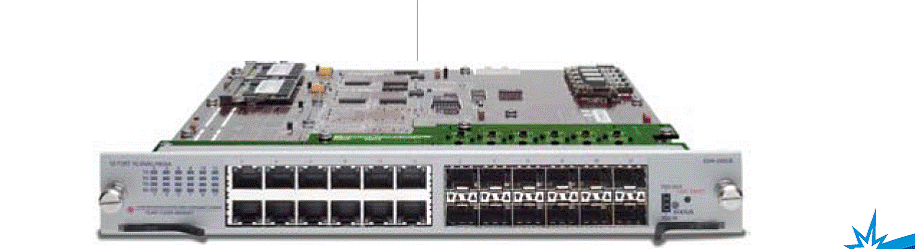

Spirent – CPR-2002B Features & Specifications:
The Series 2000 Gigabit Ethernet test modules suit customers with total flexibility including conformance test capabilities, Layer 2/Layer 3 scalability with basic routing, through advanced Layer 3 with high performance routing capabilities. Additionally, the Series 2000 GigE modules measure performance of IPTV, Layer 4 to 7 devices such as firewalls, load balancers, IDS/IPS systems, SSL accelerators, Web accelerators and SSL and IPSec VPNs.
Series 2000 modules can scale up to 32,767 streams per port. When combined with high-scale Spirent TestCenter software components, they offer the complete high performance testing solution.
2000 SERIES – 10/100 COPPER RJ-45, 8 PORT. Requires small form factor cardcarrier if used in 2U/9U.
Spirent – CPR-2002B Specifications
- Wire-rate and beyond wire-rate traffic generation and analysis at Layers 2 and 3
- Supports up to 32,767 transmit streams per port and up to 65,535 receive streams per port
- Supports RFC 2889 LAN switching performance and RFC 2544 L2/L3 performance tests
- Modules can be hot-swapped
- Unified automation features shared by all Spirent TestCenter components
Spirent – CPR-2002B KEY FEATURES
- High port density modules with per-port group reservation, providing multi-user capability
- Dual media test modules provide 10/100/1000 Mbps and Gigabit
- Ethernet fiber
- Wire-rate and beyond wire-rate traffic generation and analysis at Layers 2 and 3
- Compatible with all Spirent TestCenter software applications for comprehensive functional testing and performance analysis all in one system
- Supports automated industry standard RFC 2889 LAN switching performance and RFC 2544 L2/L3 performance tests
- Supports all core technologies required to test Enterprise L2/L3 switches, including QoS, IPv4/v6, multicast, routing, spanning tree, VLAN, and DHCP. Simultaneously runs multiple protocols per port to emulate large routed networks
- Series 2000 GigE modules support testing of application level protocols such as HTTP, SSL, FTP, Telnet, DNS, IPv6, IPSec, Capture/Replay, SIP, SMTP and POP3
-
Custom packet and frame editing is facilitated by a graphically driven field editor that allows the user to edit templates for a wide variety of preconfigured control and data plane packets
-
Real-time per stream statistics, such as minimum, maximum, and average latency per traffic class
-
Real-time event log allows user to view actual protocol messaging on a per-port basis
-
Hardware is field-programmable. The module can be upgraded on site in its chassis as new features and technologies become available
Spirent – CPR-2002B APPLICATIONS
- Use Series 1000 modules combined with the SPT-5000A or SPT-9000A chassis to achieve high volume production testing where high-density, low cost Ethernet ports are required
- Benchmark network device scalability and limitations at a cost effective price
- Develop and test your device in the lab with the Series 1000 or Series 2000 test modules, then carry them to your customer site installed in an SPT-2000A portable chassis to prove your device’s performance.
- Compare and validate network equipment to determine the suitability of a specific application prior to deployment
