Description

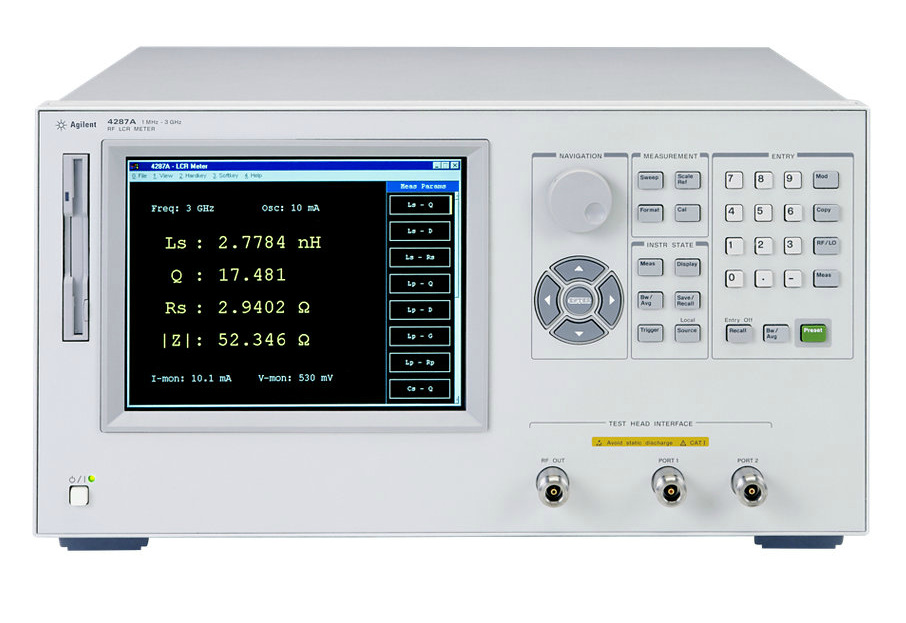

The Keysight (Agilent/HP) 4287A RF LCR Meter offers accurate, reliable and fast measurements from 1 MHz to 3 GHz to improve quality and throughput of electronic component testing in production lines. The Keysight (Agilent/HP) 4287A RF LCR Meter employs the direct-current voltage-measurement technique, as opposed to the reflection-measurement technique, which yields accurate measurements over a wide impedance range.

Features of the Keysight (Agilent/HP) 4287A RF LCR Meter:

• Frequency: 1 MHz to 3 GHz, with 100 kHz steps
• Measurement Range: Wide impedance measurement range from 200 m ohm to 3 k ohm
• Basic Accuracy: 1% basic accuracy
• Superior measurement repeatability at low test signal level
• High-speed measurements: 9 ms

Basic Measurement Characteristics Keysight (Agilent/HP) 4287A RF LCR Meter:

• Measurement parameters: Impedance parameters |Z|, |Y|, Ls, Lp, Cs, Cp, Rs, Rp, X, G, B, D, Q, θz [°], θz [rad], θy [°], θy [rad] (A maximum of four parameters can be displayed at one time.)
• Measurement Range: 200 mΩ to 3 kΩ
  •  Frequenc y = 1 MHz
  • Averaging factor = 8
  • Oscillator level ≥ –33 dBm
  • Measurement uncertainty ≤ ± 10 %
  • Calibration is performed within 23 °C ± 5 °C
  • Measurement is performed within ± 5 °C from the calibration temperature
• Source Characteristics (Frequency):
  • Range 1 MHz to 3 GHz
  • Resolution 100 kHz
  • Uncertainty
    • ± 10 ppm (23 °C ± 5 °C)
    • ± 20 ppm (5 °C to 40 °C)

Contact TestWorld today for the best price on the Keysight (Agilent/HP) 4287A RF LCR Meter, 1 MHz – 3 GHz.

Configurable Options for the Keysight (Agilent/HP) 4287A:

• 4287A-004 Add working standard set 1
• 4287A-020 Add test fixture extension cable set 1
• 4287A-700 16195B calibration kit 1
• 4287A-710 Test fixture stand 1
• 4287A-720 3.5 mm – 7 mm coaxial adapter 1
• 4287A-810 Add keyboard 1
• 4287A-820 Add mouse 1
• 4287A-1A7 ISO 17025 compliant calibration 1
• 4287A-ABJ Japan-Japanese localization 1
• 4287A-ABA U.S.-English localization 1
• 4287A-0BW Add service manual 1
• 4287A-1CM Rack flange kit 1
• 4287A-1CN Front handle kit 1
• 4287A-1CP Handle/rack mount kit 1
