Description

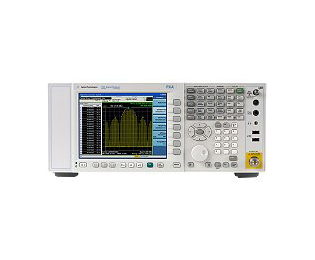

Option RT1 adds the real-time spectrum analyzer (RTSA) capabilities to a new N9030A PXA signal analyzer. Adding RTSA to the PXA lets you see, capture and understand the most elusive signals—known or unknown.

Enables true gap-free real-time spectrum analysis in a high-performance signal analyzer

Quickly switch from must-have measurements—phase noise, noise figure and power—to transient real-time analysis

Confidently capture the behavior of dynamic signals with durations as short as >15 µs (at 100% POI) with FMT

Selectively trigger with TQT to find pulse outliers or trigger on specific communication bursts

Seamlessly integrates with 89600 VSA software for thorough analysis of complex signals

Measure over 75 modulation types, from custom OFDM or APSK to standard-based signals such as MIL-STD, GSM or LTE

Use frequency-mask trigger to record culprit signals then playback through links to Keysight vector signal generators, arbitrary waveform generators, or MATLAB

Maximize your investment—add real-time spectrum analyzer capabilities to a PXA at a fraction of the cost of a dedicated solution

Key Features & Specifications N9030A:

Functionality

Up to 160 MHz real-time bandwidth (requires Option B85 or B1X), up to 50 GHz (up to 110 GHz using opt EXM and external mixer)

Real-time displays include digital density (with digital persistence), swept density, spectrum, spectrogram, power vs. time and more

Frequency-mask trigger (FMT), Time qualified trigger (TQT), both standard feature

Performance

15 µs minimum signal duration for 100% probability of frequency mask triggering

Up to 75 dBc of spurious-free dynamic range across 160-MHz bandwidth

Frequency coverage up to 110 GHz with external mixing, 1.1 THz using 3rd party mixers
