Description

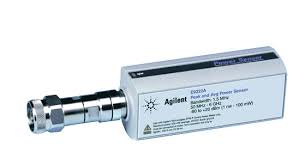

Keysight (Agilent) E9323A Peak and Average Power Sensor, 5 MHz Video Bandwidth, is used with the EPM-P series power meters and E9288A-C sensor cables.Keysight Technologies (formerly Agilent) E9323A.50MHz to 6GHz, peak and average sensor.Power range Average mode: -60 to +20 dBm (100pW to 100mW),Maximum power: +23dBm average; +30dBm peak

Keysight (Agilent) E9323A Specifications:

Frequency Range: 50 MHz to 6 GHz
Power Range: -60 to +20 dBm (1 nW to 100 mW)
Peak and Average/CW Measurements with 5 MHz bandwidth (EPM-P)
Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
Wide dynamic range
Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
Precision type-N connector as standard
