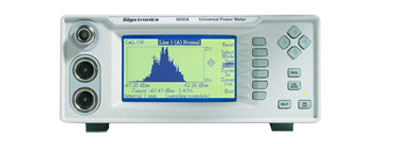

Gigatronics 8651A Single Channel Universal Power Meter, 100 kHz – 40 GHz

Gigatronics 8651A Single Channel Universal Power Meter, 100 kHz – 40 GHz

Description

The Giga-tronics 8651A Single Channel Universal Power Meter has the extensive measurement capabilities and features you need to test today’s sophisticated communications systems faster, easier and more accurately.

The 8651A can measure the CW power, peak power and average power of TDMA, GSM, and CDMA (both IS-95 and third-generation 10 MHz wide band) signals. CW measurement speeds (readings/second) over GPIB are >1,750 and modulated measurement speeds are >300. And the meter includes many time saving features such as automatic time gate setting, direct crest factor measurement, and statistical power measurement analysis.

Key Features Gigatronics 8651A:

  • 100 kHz to 40 GHz Frequency Range, depending on sensor
  • -70 to +47 dBm Power Range, depending on sensor
  • Linearity ±0.02 dB
  • GPIB CW Measurement Speed (rdgs/s):
    • Normal Mode >300
    • Swift Mode >1,750
    • Buffered Mode >26,000
  • GPIB Modulated Measurement Speed (rdgs/s):
    • Normal Mode >150
    • Swift Mode >300
    • Buffered Mode >800
  • Uniform Sample Rate of 20 MHz and Random Sample Rate from 2.5 to 5 MHz
  • 20 MHz Maximum Diode Sensor Video Bandwidth
  • 10 MHz Instrument Video Bandwidth
  • Maximum CW Single Sensor Dynamic Range: 90 dB
  • Maximum Single Sensor Dynamic Range:
    • TDMA/GSM 60 dB
    • CDMA (IS-95) 80 dB
    • CDMA ((10 MHZ bandwidth) 80 dB
  • 100 ns Maximum Peak Power Sensor Rise Time
  • Normal Mode >150
  • Swift Mode >300
  • Buffered Mode >800
  • Uniform Sample Rate of 20 MHz and Random Sample Rate from 2.5 to 5 MHz
  • 20 MHz Maximum Diode Sensor Video Bandwidth
  • 10 MHz Instrument Video Bandwidth
  • Maximum CW Single Sensor Dynamic Range: 90 dB
  • Maximum Single Sensor Dynamic Range:
    • TDMA/GSM 60 dB
    • CDMA (IS-95) 80 dB
    • CDMA ((10 MHZ bandwidth) 80 dB
  • 100 ns Maximum Peak Power Sensor Rise Time
  • Automatic Time Gate Setting
  • Direct Crest Factor Measurement
  • Statistical Power Measurement Analysis
