Description

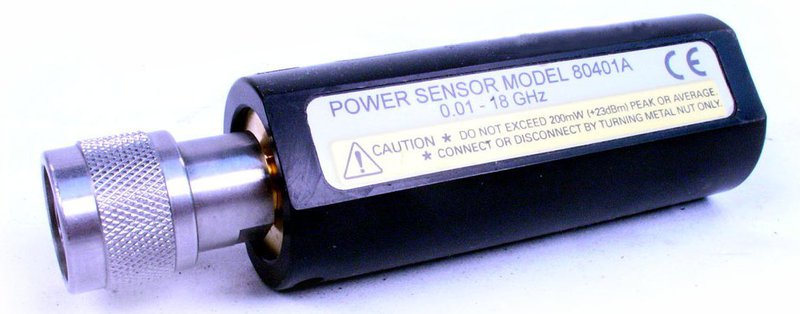

The Gigatronics 80401A Modulation AVG Power Sensor, 10 MHz to 18 GHz,  -67 dBm to +20 dBm of amplitude modulated, burst modulated and other complex modulated signals, such as TDMA signals – at bandwidths up to 40 kHz. With a frequency range of 10 MHz to 18 GHz, the 80401A measures signal levels from -67 dBm to +20 dBm. The sensor works with the 8540B, 8540C, 8650A, 8650B series power meters

Gigatronics 80401A Power Sensor 10 MHz to 18 GHz let you measure the average power of amplitude modulated, burst modulated and other complex modulated signals, such as TDMA signals – at bandwidths up to 40 kHz.  This sensor works with the 8540B, 8540C, 8650A, 8650B series power meters.

Key Features Gigatronics 80401A:

• Frequency Range: 10 MHz to 18 GHz
• Power Range: -67 dBm to +20 dBm
• Max Power: Peak: +23 dBm (200 mW)
• Power Linearity: -67 to -20 dBm: ±0.00 dB; -20 to +20 dBm: ±0.05 dB/10 dB
• RF connector: Type N(m) 50 ohm
• VSWR: 1.12: 0.01-2 GHz / 1.22: 2-12.4 GHz / 1.29: 12.4-18 GHz
• Shipping Weight: 2 lb
