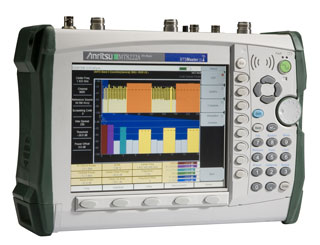

Anritsu MT8222A BTS Master Base Station Analyzer

Anritsu MT8222A BTS Master Base Station Analyzer

Description

RF engineers and technicians in the field need a lightweight, practical, and rugged test solution that can perform all the measurements needed for installation and maintenance of modern cell sites. That solution is the Anritsu BTS Master MT8222A. It combines the functionality of Anritsu’s high performance-handheld products, including the Anritsu MS2721B Spectrum Master and the Anritsu MS2024A and MS2026A Cable and Antenna Analyzer. This combined product weighs less than 4 kg. (9lbs.). The Anritsu MT8222A provides users with cable and antenna analysis, spectrum analysis, power meter,  W-CDMA/HSDPA, GSM/GPRS/EDGE, CDMA/EVDO, Fixed WiMAX, Mobile WiMAX and TD-SCDMA, RF and Demod measurements and  W-CDMA/HSDPA CDMA/EVDO, Mobile WiMAX and TD-SCDMA Over the Air (OTA), channel scanner, Interference Analyzer, variable Bias Tee, Bit Error Rate Tester (BERT) and Power Monitor. So technicians can eliminate the need to carry several independent instruments and instead get the job done with the Anritsu MT8222A – an optimal combination of Anritsu’s high performing handheld instruments.

Functions of the Anritsu MT8222A:

  • W-CDMA/HSDPA: Quickly check base station performance using RF, Demodulation, and Over The Air measurements. Easily identify HSDPA and W-CDMA OVSF codes by color.
  • GSM/GPRS/EDGE: Rapidly review base station performance via RF and Demodulation measurements.
  • Fixed WiMAX: Check the base station performance with ease using RF and Demodulation measurements.
  • Mobile WiMAX: Automatically decode the DL-MAP to demodulate Mobile WiMAX signals.
  • Spectrum Analyzer: Outstanding performance from 100 KHz to 7.1 GHz
  • Cable and Antenna Analysis: 10 MHz to 4 GHz, 10 MHz to 6 GHz (Option 26): Return Loss, Cable Loss, VSWR, Distance-To-Fault, 2-port Gain, 1-port Phase, 2-port phase, and Smith Chart for detailed analysis.
  • Power Meter: Channelized or Broadband power measurements (no detector needed) from 100 KHz to 7.1 GHz
  • High Accuracy Power Meter Performs accurate RMS power measurements for CW and modulated signals.
  • Interference Analyzer: Identify interfering signals using Spectrogram display, RSSI, and Signal Strength displays.
  • Channel Scanner Measure frequency, bandwidth and power of multiple transmitted signals. Create 20 custom channels to scan by frequencies or channels.
  • Bit Error Rate Tester (BERT): T1, FT1, T3, 2 Mb/s-E1 Capability to analyze if the problem is on the wireline or the wireless side.
  • GPS Receiver: Provides location Information and enhance reference frequency oscillator accuracy

Configurable Options Anritsu MT8222A:

  • MT8222A-005 Power Monitor (requires external detector)
  • MT8222A-010 Bias Tee variable voltage
  • MT8222A-019 High Accuracy Power Meter (PSN50 sensor not included)
  • MT8222A-025 Interference Analysis
  • MT8222A-026 6 GHz Cable and Antenna Analyzer (10 MHz to 6 GHz)
  • MT8222A-027 Channel Scanner
  • MT8222A-028 CW Signal Generator (requires CW Signal Generator kit)
  • MT8222A-031 GPS Receiver (includes GPS antenna, Anritsu part number: 2000-1410)
  • MT8222A-033 cdmaOne and CDMA2000 1xRTT Over The Air (OTA)
  • MT8222A-034 EVDO Over the Air (OTA)
  • MT8222A-035 W-CDMA/HSDPA (OTA)
  • MT8222A-037 Mobile WiMAX Over The Air (OTA) Measurements
  • MT8222A-038 TD-SCDMA Over the Air (OTA) Measurements
  • MT8222A-040 GSM/GPRS/EDGE RF Measurement
  • MT8222A-041 GSM/GPRS/EDGE Demodulation
  • MT8222A-042 CDMA RF Measurements
  • MT8222A-043 cdmaOne and CDMA2000 1xRTT Demodulator
  • MT8222A-044 W-CDMA/HSDPA RF Measurement
  • MT8222A-045 W-CDMA Demodulation
  • MT8222A-046 Fixed WiMAX RF Measurement
  • MT8222A-047 Fixed WiMAX Demodulation
  • MT8222A-051 T1/FT1 BERT (Bit-Error-Rate-Tester)
  • MT8222A-052 E1-2 Mb/s Bit-Error-Rate-Tester (BERT)
  • MT8222A-053 T3/T1/FT1 BERT (Bit-Error-Rate-Tester)
  • MT8222A-060 TD-SCDMA RF Measurements
  • MT8222A-061 TD-SCDMA Demodulator
  • MT8222A-062 EVDO RF Measurements
  • MT8222A-063 EVDO Demodulator
  • MT8222A-064 DVB-T/H Digital Video Measurement
  • MT8222A-065 W-CDMA/HSDPA Demodulation
  • MT8222A-066 Mobile WiMAX RF Measurements
  • MT8222A-067 Mobile WiMAX Demodulator
