Description
The MS269XA Series Signal Analyzers support a standard measurement analysis bandwidth of 31.25 MHz that can be extended to 125 MHz with the appropriate optional hardware. Using a patented calibration process, the multipoint amplitude calibration and the phase calibration result in a level accuracy of ±0.5 dB across a 6 GHz span. No other analyzer on the market can meet that specification! These boxes are superlative in every way – they measure the widest signals, using the latest technology to make measurements faster than ever before. The modular architecture ensures a box that grows with you as your measurement requirements change. A series of options enables standards-based modulation analysis, vector signal generation, and BER measurement. The end-user can configure a single box solution that dramatically reduces cost, footprint, and Total Average Cycle Time (TACT) for device evaluation.

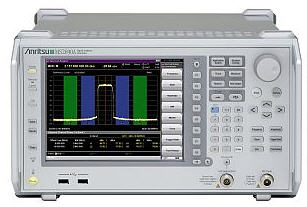

Key Features: Anritsu MS2691A
- Frequency Range: 50Hz-13.5GHz
- Vector Signal Analysis function combines speed with reliable and stable RF performance
- 125 MHz Analysis Bandwidth
- High accuracy digitizer function captures RF signal without loss
- Vector Signal Generator Option up to 6GHz
- DL-MAP decode provided for mobile WiMAX measurement
- Software options for WCDMA, WiMAX and LTE applications.
- High-Speed External Interface: LAN 10/100/1000 base T, USB2.0, IEEE488
