Description

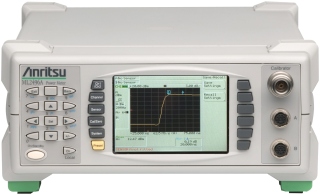

The Anritsu ML2496A Dual Input Pulse Power Meter, 1 ns Rise-Time, 1 Gs/s Sample Rate measurements on radar and the latest 3G and 4G wireless systems, including next-generation systems based on complex new modulation technologies such as OFDM

The ML2496A Peak Power Meter has been designed for high resolution measurements on radar and the latest 3G and 4G wireless systems, including next-generation systems based on complex new modulation technologies such as OFDM. They have the highest bandwidth and highest resolution in rising edge pulse measurements. A combination of an advanced sampling system and measurement features provides precise and accurate details on the transmitter’s power envelope. High quality CW measurement ability compatible with a wide range of sensors adds to their uniqueness by making them universal, with all-purpose flexibility

Key Features Anritsu ML2496A:

• 8 ns Typical Rise Time with MA2411B Pulse Sensor
• 65 MHz Bandwidth
• 50 ns Minimum Display Time
• 1 ns Settable Time Resolution
• 10 MHz PRF Trigger
