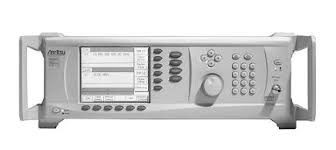

Anritsu MG3695A 50 GHz Signal Generator

Anritsu MG3695A 50 GHz Signal Generator

Product Documentation

Description

The Anritsu MG3695A synthesized signal generator is a microprocessor-based, synthesized signal source with high resolution phase-lock capability. It can generate both discrete CW frequencies and broad (full range) and narrow band step sweeps across the frequency range of 2 GHz to 50 GHz. Options are available to extend the low end of the frequency range to 0.1 Hz. All functions of the signal generator are fully controllable locally from the front panel or remotely (except for power on/standby) via the IEEE-488 General Purpose Interface Bus. Specifications. Frequency Range: 2 GHz to 50 GHz. Resolution – 0.01 Hz. Phase Offset – 0.1 dB steps. RF Frequency Coverage Extension, down to 0.1 Hz.



Key Features for the Anritsu MG3695A ;

  • Resolution – 0.01 Hz
  • Phase Offset – 0.1 dB steps
  • RF Frequency Coverage Extension, down to 0.1 Hz
    • Best solution for dual RF and Microwave applications
    • An optional down-converter covers 10 MHz to 2 GHz
    • An optional DDS offers additional coverage to 0.1 Hz
  • Excellent Phase Noise performance as standard
    • Add optional ultra low phase noise > 2 GHz
    • Add an optional digital down-converter for:
    • Lowest Phase Noise RF source from 10 MHz to 2.2 GHz
    • < 130 dBc/Hz @ 1 GHz, 10 kHz offset
  • High Output Power
    • 13 dBm standard (@ 20 GHz)
    • 17 dBm optional (@ 20 GHz)
    • 14 dBm optional (@ 40 GHz)
