Description

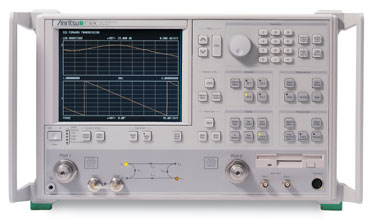

The Anritsu 37377C 50 GHz Network Analyzer for S-Parameter Measurements on Frequency Translation Devices is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.

Anritsu 37377C network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Anritsu 37377C network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Anritsu 37377C can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.

Key Features Anritsu 37377C:

• Fast Sweeping Synthesized Source
• Auto Reversing Test Set (37200C/37300C models only)
• Solid-State Transfer Switch (37200C/37300C models only)
• Four Independent Display Channels
• Multiple Source Control of Two External Sources
• Four Channel Receiver
• Internal Hard and Floppy Disk Drives
• LRL/LRM Calibration
• Adapter Removal Calibrations
• Fast Measurement Throughput via GPIB
• Built-In AutoCal® Control
