Description

Quick Specs – 350 MHz to 2 GHz Bandwidth – up to 10 GS/s – 4 Mpts/Ch standard memory – Uncommon capabilities – right out of the box – Efficient User Interface WaveRunner 6000A Series Oscilloscope The WaveRunner? 6000A Series is the best oscilloscope for everyday signal testing. Its remarkable functionality includes the following capabilities: acquisition technology that delivers measurements you can trust an efficient interface that feels just right to the busy engineer uncommon capabilities-right out of the box a platform for building on even more functionality

Feature:

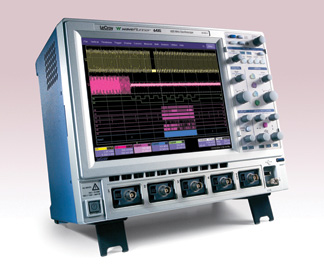

Lecroy WR6100A 1 GHz 4 Channel Digital Oscilloscope

• The WaveRunner 6000A Series is the best oscilloscope for everyday signal testing. Its remarkable functionality includes the following capabilities:
• acquisition technology that delivers measurements you can trus
• An efficient interface that feels just right to the busy engineer
• Uncommon capabilities-right out of the box
• A platform for building on even more functionality

• A Rich Feature Set is Standard The new WaveRunner is an everyday bench scope with true “lab instrument” capabilities. This series offers:
  • Bandwidths from 350 MHz to 2 GHz
  • Sample rates of 2.5 to 10 GS/s
  • Standard memory 2 Mpts/Ch
  • All channels expandable to 12 Mpts
  • Up to 24 Mpts when interleaved
  Most importantly, these features are delivered at a price far below other oscilloscopes in this class.

Outstanding Signal Fidelity

The WaveRunner 6000A series is powered by the same SiGe chipset that is used in LeCroy’s higher bandwidth WaveMaster oscilloscopes.
• High sample rate captureshigh frequency transients and sharp edges
• Very low residual jitter (2 ps typical)
• Includes ultra-stable clock (±5 ppm) This outstanding performance gives you timing resolution that rivals oscilloscopes that cost twice as much.
