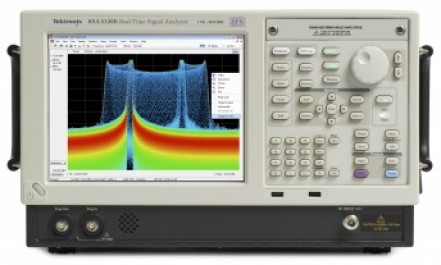

Tektronix RSA5106B 1 Hz – 6.2 GHz Real-Time Spectrum Analyzer for Frequency Agile Communications

Tektronix RSA5106B 1 Hz – 6.2 GHz Real-Time Spectrum Analyzer for Frequency Agile Communications

Description

Tektronix RSA5106B 1 Hz – 6.2 GHz Real-Time Spectrum Analyzer for Frequency Agile Communications  The Tektronix RSA5106B spectrum analyzer is a wide band, very sensitive receiver. It works on the principle of “super-heterodyne receiver” to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities. The received frequency spectrum is slowly swept through a range of pre-selected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Tektronix RSA5106B. The CRT displays received signal strength (y-axis) against frequency ( x-axis).Some applications for Tektronix RSA5106B Spectrum Analyzers include Site Monitoring: Verify that the frequency and signal strength of your transmitter is accurate. Interference: Before a system is installed you use a Tektronix RSA5106B spectrum analyzer to verify that the frequencies (you plan to use) are not occupied or if the presence of a very strong signal will interfere with your new setup. Interference can be created by a number of different situations.

Key Features:   Tektronix RSA5106B

  • Frequency Range: 1 Hz to 3.0/6.2/15/26.5 GHz
  • Real Time Bandwidth to 165 MHz (RSA5126B)
  • Expanded support for 802.11 WLAN standards (optional) including the widest-bandwidth 802.11ac variant
  • Outstanding Mid-Range Spectrum Analysis
  • Reduce time-to-fault and increase confidence with real time processing
  • Triggers zero in on the problem
  • Capture the widest and deepest signals
  • More standard analysis than you expect in an everyday tool
  • Optional performance offers added value
  • One-year war
