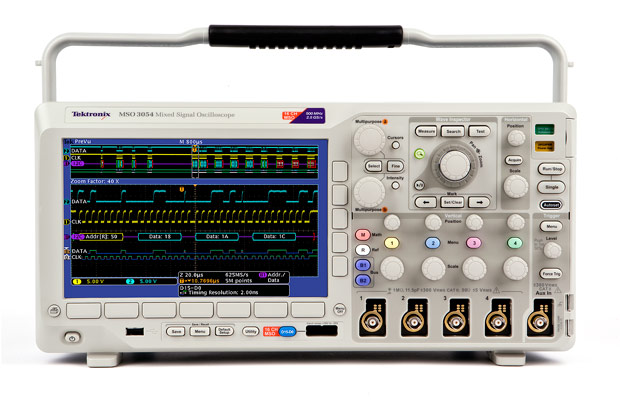

The Tektronix MSO3054 500 MHz, 4+16-Ch, 2.5 GS/s Mixed Signal Oscilloscope deliver the performance you need to visualize even your most demanding signals. Bandwidths range from 100 MHz to 500 MHz and with all models offering a minimum of 5x over-sampling on all channels and sin (x)/x interpolation standard, you can be confident that even the fastest transient events will be captured and displayed accurately. The standard 5M record length on all channels enables you to capture long windows of signal activity while maintaining fine timing resolution. The 50,000 wfm/s waveform capture rate maximizes the probability of capturing elusive glitches and other infrequent events. The MSO3000 Series offers a variety of analytical solutions including cursors, 29 automatic measurements, statistics and waveform math. Despite a tiny footprint (only 5.4in.deep) and lightweight (9lbs.), the MSO3000 Series offers exceptional performance, a large 9in.WVGA widescreen display and knob-per-channel vertical controls.
Tektronix MSO3054 Specifications:
- 500 MHz Bandwidth Models
- 2 and 4 Channel Models
- 16 Digital Channels
- Sample Rates Up to 2.5 GS/s on All Channels
- 5 Megasample Record Length on All Channels
- 50,000 wfm/s Maximum Waveform Capture Rate
- Suite of Advanced Triggers
Contact TestWorld today for the best price on the Tektronix MSO3054 500 MHz, 4+16-Ch, 2.5GS/s Mixed Signal Oscilloscope.
