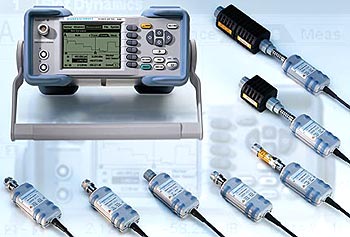

Rohde & Schwarz – NRP Single Channel Power Meter

Rohde & Schwarz – NRP Single Channel Power Meter


The NRP RF and Microwave Power Meter is suitable for research and development, production and mobile service as well as the analysis of broadband modulation signals of third-generation mobile radio. In research applications, the NRP excels with high measurement accuracy and a dynamic range of 90 dB. This applies to broadband signals of any modulation, including RF bandwidths beyond 100 MHz for wireless LAN. The NRP base unit accommodates up to 4 sensor heads, and displays all four measurement results at the same time. Alternatively, the sensors can be connected directly to a PC via USB interface. Applications in manufacturing test also benefit from the instrument’s high measurement speed, its ease of use, and remote controllability. The NRP is lightweight and robust, and operates over a wide temperature range. This makes the instrument an excellent choice also for installation, service and maintenance in the field.

Key Facts

  • Three-path diode power sensors: fast, accurate and packed with features for CW and modulated signals
  • Wideband power sensors: time domain analysis and automatic pulse analysis for radar applications and universal use
  • Thermal power sensors: most accurate power measurements for reference applications and use in calibration labs
  • Two-path diode power sensors: cost efficient power measurement solution for production
  • Average power sensors: accurate average power measurement for EMC applications
  • Level control sensors: highly accurate signal level generation in conjunction with a signal generator
  • Power sensor module: level calibration of signal sources in conjunction with the R&S®FSMR measurement receiver
  • Versatile measurement functions
  • Simply plug-in and measure
  • Minimize measurement uncertainty
  • Enhanced auto-averaging filter
  • Easy system integration
  • Multiple ways to operate R&S®NRP-Zxx sensors


Dynamic range up to 90 dB (sensor dependent)
Level range -67 dBm +45 dBm (sensor dependent)
Measurement speed 1500 measurements per second in the buffered mode
Linearity uncertainty 1.5 % (20 to 25 deg. C, f = 100 MHz to 4 GHz)
Precise average power measurements irrespective of modulation type and bandwidth
Up to 4 power sensors on one R&S NRP base unit simultaneously
Flexible measurements on up to 128 time slots per power sensor (26 time slots with base unit)
Direct USB connection from sensor to a PC
S parameter correction of components between sensor and test object

R&S®NRP-Z Sensors
Dynamic range up to 90 dB (sensor dependent)
Level range -67 dBm to +45 dBm (sensor dependent)
Frequency range DC to 110 GHz (sensor dependent)
