Description

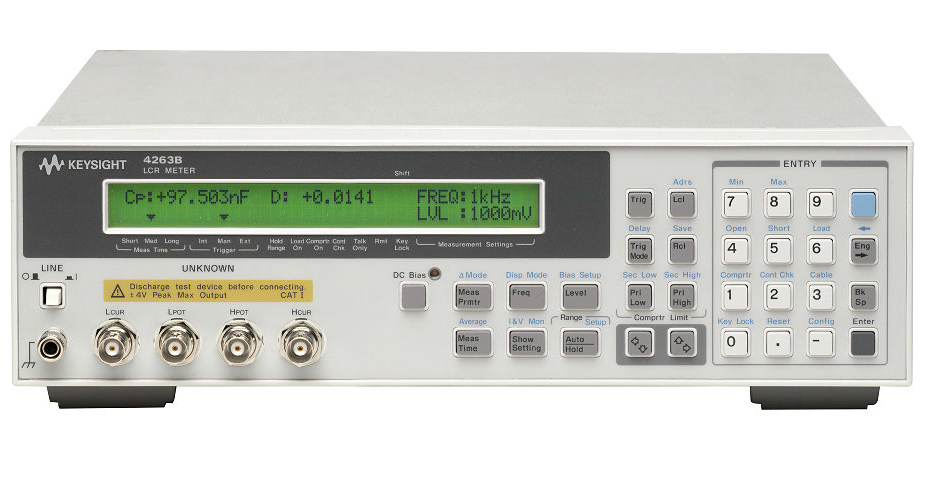

The Keysight (Agilent/HP) 4263B LCR Meter, 100 Hz to 100 kHz is the most cost-effective low-end LCR meter, designed for both component evaluation on the production line and fundamental impedance testing for bentch top application.
Effective December 1, 2010, the Keysight (Agilent/HP) 4263B’s base price has been reduced. Also, the option 001 (transformer parameter measurement) and 002 (20 kHz test frequency) are available without charge. Please order the Keysight (Agilent/HP) 4263B with option 001 and 002.
Features of the Keysight (Agilent/HP) 4263B LCR Meter:
- 0.1% basic accuracy
- High-speed measurement: 25 ms
- DC and six frequencies (100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz)
- Measurement parameters: Z, Y, Theta, R, X, G, B, C, L, D, Q, Rdc, N, M
- AC Test signal level: 20 mV to 1 Vrms in 5 mV step
- Internal DC bias (1.5 V, 2 V)
- Test signal level monitor function
- High-speed contact check
- Wide capacitance test range
- OPEN/SHORT/LOAD correction
- Up to 4 m cable extension
- Wide fixture availability
Contact TestWorld today for the best price on the Keysight (Agilent/HP) 4263B LCR Meter, 100 Hz to 100 kHz.
Explore Financial options to find a cost management solution best for your company:
Configurable Options for the Keysight (Agilent/HP) 4263B LCR Meter:
- 4263B-001 Add N/M/DCR Measurement Function
- 4263B-002 Add 20 kHz Test Frequency
- 4263B-ABA U.S. – English localization
- 4263B-ABJ Japan – Japanese localization
- 4263B-0BW Add service manual
- 4263B-1CM Rackmount kit
- 4263B-1CN Handle kit
- 4263B-1A7 ISO 17025 compliant calibration
