Keysight (Agilent/HP) 34970A Data Acquisition / Data Logger Switch Unit

Keysight (Agilent/HP) 34970A Data Acquisition / Data Logger Switch Unit

Product Documentation

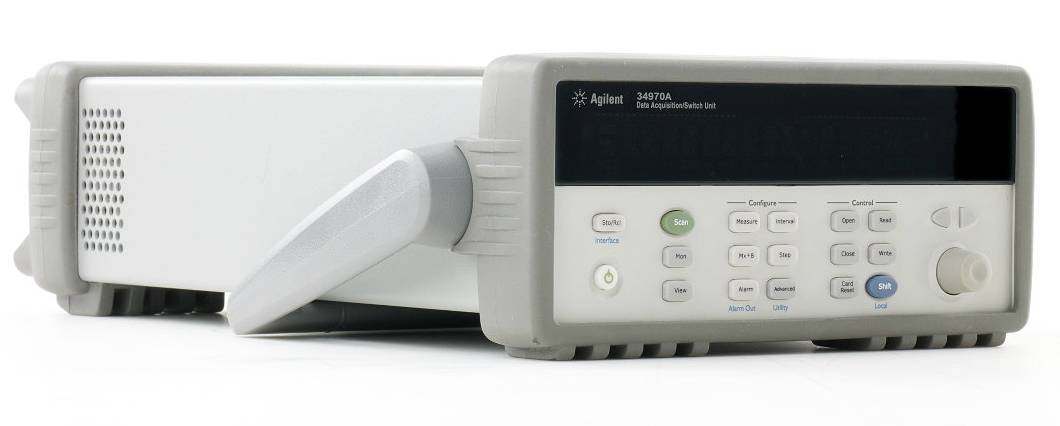

The Keysight (Agilent/HP) 34970A Data Acquisition / Data Logger Switch Unit consists of a three-slot mainframe with a built-in 6 1/2 digit digital multimeter. Each channel can be configured independently to measure one of 11 different functions without the added cost or hassles of signal-conditioning accessories. Choose from eight optional plug-in modules to create a compact data logger, full-featured data acquisition system or low-cost switching unit. On-module screw-terminal connections eliminate the need for terminal blocks and a unique relay maintenance feature counts every closure on every switch for easy, predictable relay maintenance. Our most popular module 34901A features a built-in thermocouple reference and 20 two-wire channels.

We took the measurement engine from our best-selling benchtop DMM and embedded it inside a 3-slot mainframe. You get the benefit of proven Keysight measurement performance, universal inputs with built-in signal conditioning, and modular flexibility, all in a low-cost, compact data acquisition package. The Keysight (Agilent/HP) 34970A features 6½ digits (22 bits) of resolution, 0.004% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 250 channels/sec, and you’ve got the speed and accuracy you need to get the job done right the first time.

Features of the Keysight (Agilent/HP) 34970A:

  • 3-slot mainframe with built-in GPIB and RS232 interfaces
  • 6 1/2-digit (22-bit) internal DMM, scanning up to 250 channels per second
  • 8 switch and control plug-in modules to choose from
  • Built-in signal conditioning measures thermocouples, RTDs and thermistors, ac/dc volts and current; resistance; frequency and period
  • 50k readings of non-volatile memory holds data when power is removed
  • Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
  • Free BenchLink data logger software to create tests without programming

Contact TestWorld today for the best price on the Keysight (Agilent/HP) 34970A Data Acquisition / Data Logger Switch Unit. Rental and financing/lease options available.

Modules Available with the Keysight (Agilent/HP) 34970A:

  • Keysight (Agilent/HP) 34901A 20-Channel armature multiplexer
  • Keysight (Agilent/HP) 34902A 16-Channel reed multiplexer
  • Keysight (Agilent/HP) 34903A 20-Channel actuator/general purpose switch
  • Keysight (Agilent/HP) 34904A 4 x 8 Two-wire matrix switch
  • Keysight (Agilent/HP) 34905A Dual 4-Channel RF multiplexer, 50 Ohms
  • Keysight (Agilent/HP) 34906A Dual 4-Channel RF multiplexer, 75 Ohms
  • Keysight (Agilent/HP) 34907A Multifunction module
  • Keysight (Agilent/HP) 34908A 40-Channel single-ended multiplexer
