Description
The Haefely AXOS8 expandable test system integrates all of the best features of several stand alone test systems into one single economic solution. It can be individually combined either with 7 kV Surge Combination Wave, 7 kV Ring Wave, 7 kV Telecom Wave*, 5 kV EFT/Burst or Dips & Interrupts, along with an integrated singlephase coupling / decoupling network. This allows quick and completely automated testing to the most common IEC, EN, ANSI, ITU, IEEE and UL standards.

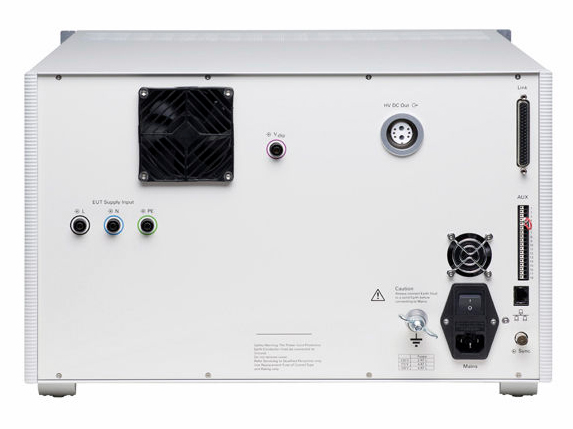

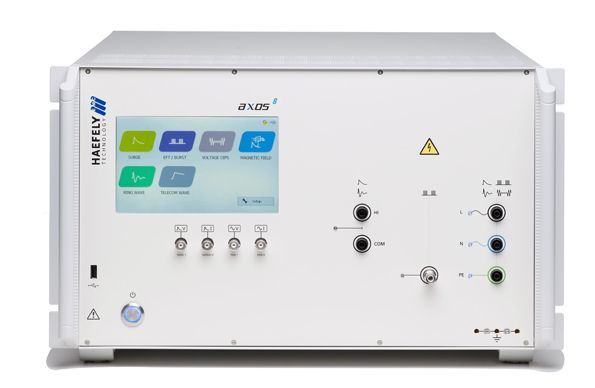

The Haefely AXOS8 High Voltage EMC Surge Generator can either be operated via front panel by large colour graphic interface or remotely from the PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequently users. Numerous additional functions such as external start/stop function allows easy integration of the test system also in customer specific test environments.
All the test parameters can be varied in a broad range wide above the requirements of the standards. Together with the ability of changing test parameters during test, Haefely AXOS8 is not only the ideal product for compliance and pre-compliance testing, it is useful for monitoring & debugging function during design phase as well.
A wide range of cost-efficient and user friendly coupling / decoupling networks for power lines as well as for symmetrical and asymmetrical data- and signal lines are available as options.
Meet the Following IEC Standards with the Haefely AXOS5:
- IEC/EN 61000-4-4 EFT / Burst
- IEC/EN 61000-4-5 Surge Edition 2 & 3 (1.2/50μs…8/20μs)
- IEC/EN 61000-4-5 Surge (10/700μs)
- IEC/EN 61000-4-9 Magnetic Field
- IEC/EN 61000-4-11 AC Dips and Interrupts
- IEC/EN 61000-4-12 Ring Wave
- IEC/EN 61000-4-29 DC Dips and Interrupts
- IEC/EN 61000-6-1 Generic Residential
- IEC/EN 61000-6-2 Generic Industrial
- IEC/EN 60335-1 Household
- IEC/EN 60601-1 Medical
- IEC/EN 60950
- EN 55024
- IEEE C62.41
- ITU K.20, K.21, K.44, K.45
Contact TestWorld today for the best price on a Haefely AXOS8 High Voltage EMC Surge Generator.
Explore Financial options to find a cost management solution best for your company:
Common Configurations available for the Haefely Axos5:
- Haefely AXOS8 Compact Immunity Test System (Part #2490800)
- Surge 1.2/50μs…8/20μs for IEC/EN 61000-4-5
- Ring Wave IEEE C62.41
- EFT/Burst for IEC/EN 61000-4-4
- Voltage Dips for IEC/EN 61000-4-11 (DIP 116 Automatic Dips Transformer 16 A 40/70/80% required)
- Magnetic Field IEC/EN 61000-4-9 (antenna coil “MSURGE-A” required)
- Haefely AXOS8 Surge Test System (Part #2490810)
- Surge 1.2/50μs…8/20μs for IEC/EN 61000-4-5
- Magnetic Field IEC/EN 61000-4-9 (antenna coil “MSURGE-A” required)
- Haefely AXOS8 EFT/Burst Test System (Part #2490830)
- EFT/Burst for IEC/EN 61000-4-4
- Haefely AXOS8 Dips Test System (Part #2490840)
- Voltage Dips for IEC/EN 61000-4-11 (DIP 116 Automatic Dips Transformer 16 A 40/70/80% required)
- Haefely AXOS8 Ring Wave Test System (Part #2490820)
- Ring Wave IEEE C62.41
- Haefely AXOS8 Telecom Wave System (Part #2490850)
- Telecom Wave 10/700μs IEC/EN 61000-4-5 & ITU
Coupling / Decoupling Network Options for your Haefely Axos5:
- FP-EFT 32M 3-Phase CDN EFT/Burst 32 A / 690 V Part #2490170
- FP-EFT 100M2 3-Phase CDN EFT/Burst 100 A / 690 V Part #2495860
- IP4A Capacitive Coupling Clamp for EFT/Burst Part #2491300
- FP-SURGE 32A Automatic 3-Phase CDN Surge 32 A / 690 V Part #2490700
- FP-SURGE 100M2 3-Phase CDN Surge 32A / 690 V Part #2490180
- PCD 121 Symmetrical Data & Control Line Coupler Part #2498010
- PCD 126A Asymmetrical Data & Control Line Coupler Part #2498030
- DEC 5 Symmetrical Data & Control Line Decoupler Part #2490141
- DEC 6 Symmetrical Data & Control Line Decoupler Part #2490151
- DEC 7 Asymmetrical Data & Control Line Decoupler Part #2490161
Additional Accessories for CE Mark Testing with the Haefely Axos5:
- TW 8 Telecom Wave Module 10/700μs Part #4700915
- DIP 116 Automatic Dips Transformer 16 A 40/70/80% Part #2490410
- MSURGE-A Magnetic Field Test IEC / EN 61000-4-9 Part #2490441
- VTM 15000 Isolation Test 1.2/50 us up to 10 kV Part #2499960
- VTM 15000/05 Isolation Test 1.2/50 us up to 10 kV / 0.5J Part #2499692
- PDP 8000 HV Differential Probe 1000:1 for Surge Part #2499911
- CP 101 Current Probe Model for Surge Part #2499931
- ES External Emergency Stop Switch P12 Part #4700751
- WL External Warning Lamp P12 Part #4700750
- Calibration Accredited Calibration AXOS5 Part #2490420
- Surge Key Code Key Code for Surge extension AXOS5 Part #4700814
- EFT/Burst Key Code Key Code for EFT/Burst extension AXOS5 Part #4700815
- Dips Key Code Key Code for Voltage Dips extension AXOS5 Part #4700816
