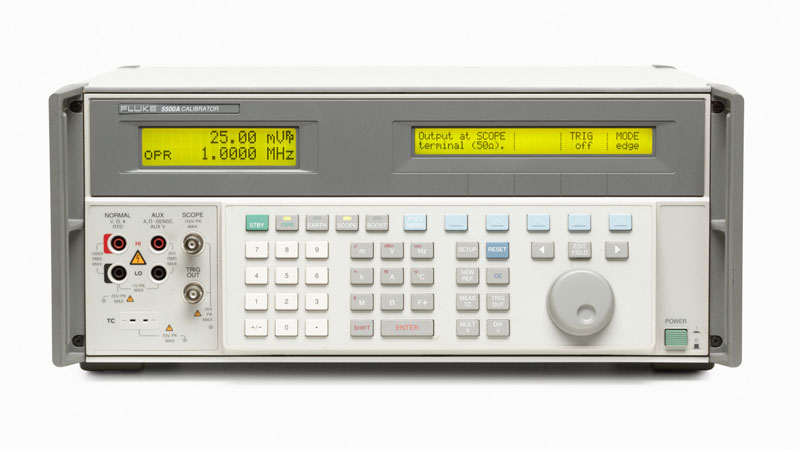

Fluke 5500A Multi-Product Calibrator

Fluke 5500A Multi-Product Calibrator

Product Documentation


The Fluke 5500A is a revolutionary product that addresses a wide cross-section of your electrical calibration work load. It sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current, and simulates power with phase control, resistance, capacitance, thermocouples and RTDs. The Fluke 5500A’s Oscilloscope Calibration options provide level sine wave, fast edge, time mark and amplitude signals for calibration of oscilloscopes up to 600 MHz.

The Fluke 5500A includes all the traditional meter calibration source functions – voltage, current and resistance. Plus it adds capacitance, and both resistance and capacitance are continuously variable with resolution down to 1 milliohm or 0.1 pF. Both are easy and practical to use with a wide variety of measurement tools.

Power is simulated using dual dc or ac outputs, allowing you to source two voltages or voltage plus current at the same time with precise phase control for wattmeter or power harmonics analyzer calibration. And the Fluke 5500A simulates a wide range of thermocouples and RTDs for temperature calibration.

For all its capabilities, the Fluke 5500A Multi-Product Calibrator is remarkably affordable. For about the same price you would expect to pay for a calibrator for one type of instrument, the Fluke 5500A can provide you with far more, making cost justification easy. And when you consider how your workload might change in the future, the Fluke 5500A is an even better value. So instead of buying several standards, the Fluke 5500A meets your needs with a single, compact tool.

The Fluke 5500A Multi-Product Calibrator also features the stability, linearity and low noise performance common to all calibrators from Fluke Calibration. Each unit is shipped with test data and a certificate of traceability to nationally recognized standards.

The Fluke 5500A was designed to cover a very wide range of medium accuracy electrical measurement devices including:

  • Handheld and bench multimeters
  • Oscilloscopes and ScopeMeter® Test Tools
  • Wattmeters
  • Analog volt/ohm/amp/watt instruments
  • Electronic thermometers
  • Data loggers
  • Strip chart recorders
  • XY Recorders
  • Power harmonics analyzers
  • Process calibrators
  • Current clamps
  • And related instruments

Contact TestWorld today for the best price on the Fluke 5500A Multi-Product Calibrator. Rental and financing/lease options available.
